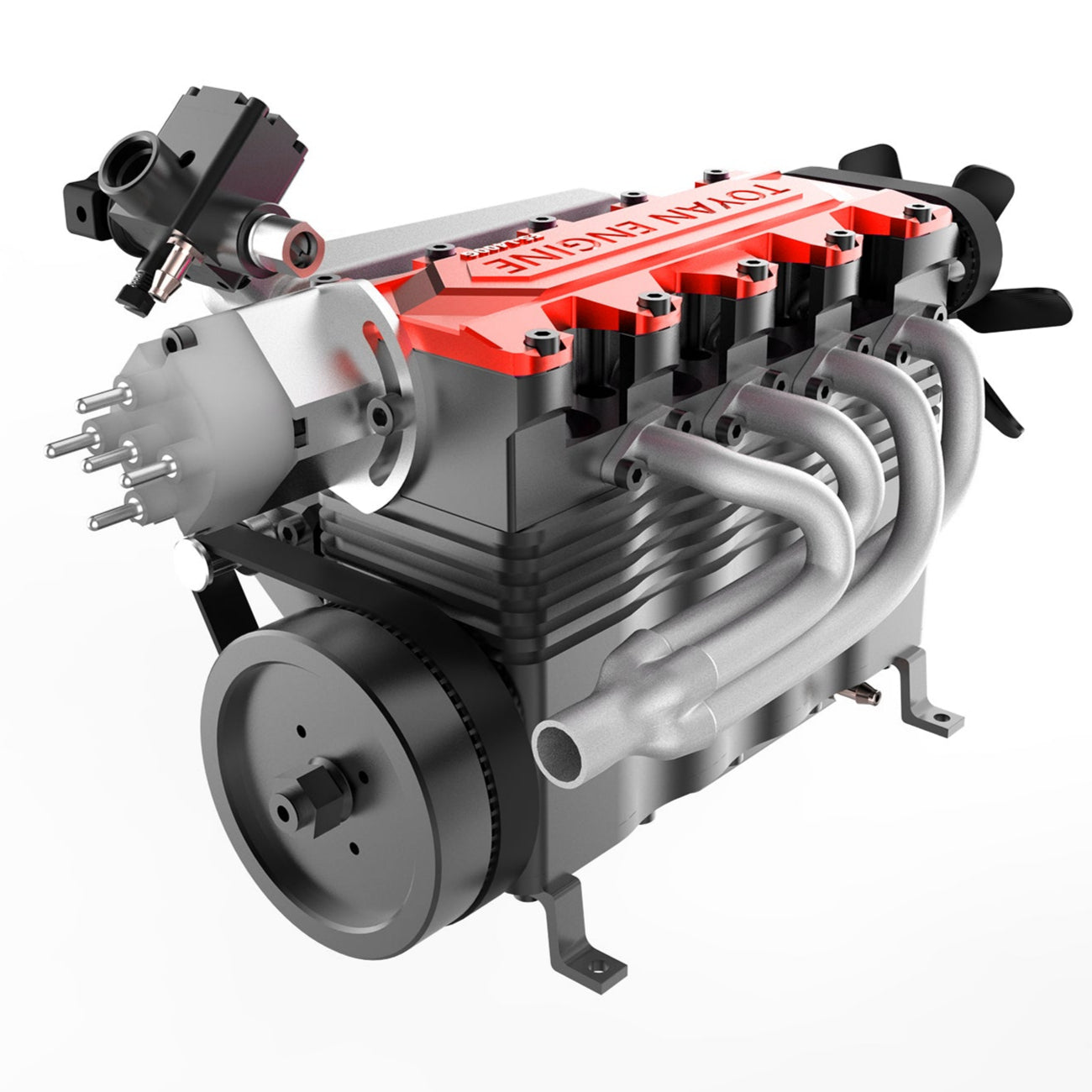

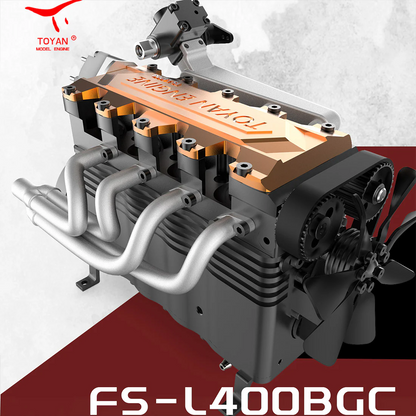

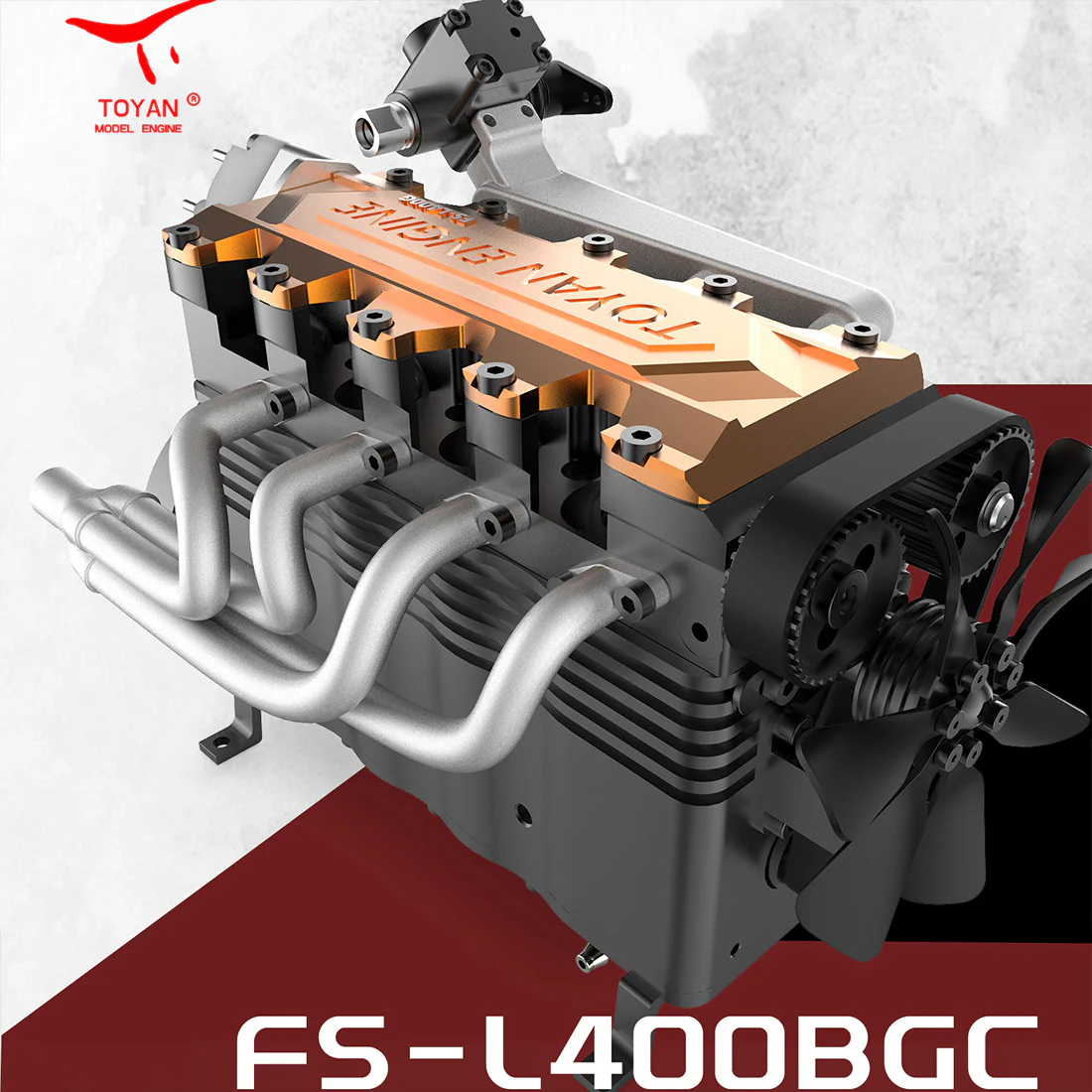

TOYAN Engine Model FS-L400BGC 14CC Inline 4 Cylinder 4 Stroke OHC L4 Water-cooled Gasoline Engine Model for RC Model Car Ship Airplane

New Updated TOYAN Gasoline Engine DIY Set Including Supercharger and Water Cooling System for 1:8 1:10 1:12 1:14 Model Car Ship and Airplane

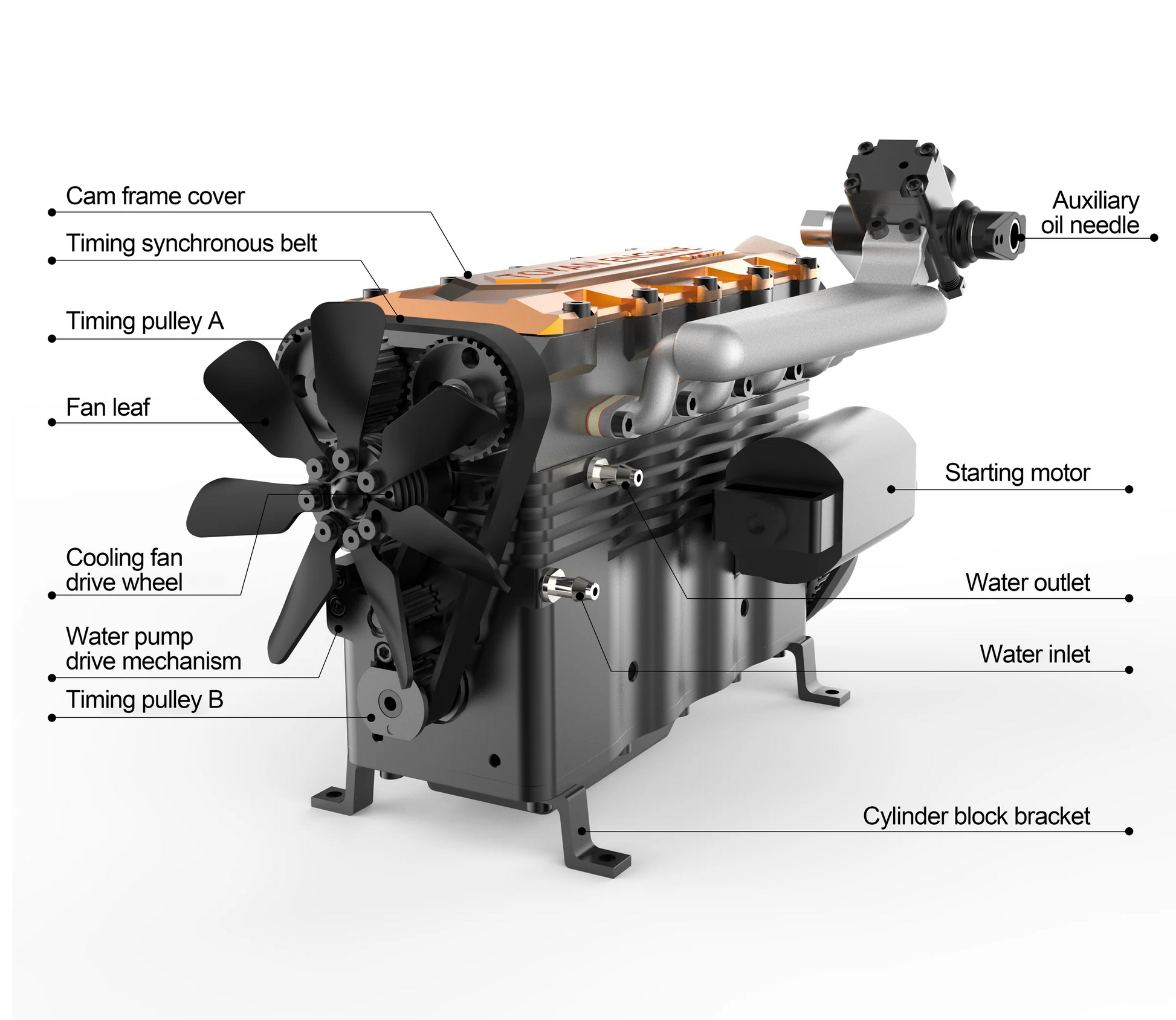

The TOYAN L400BGC engine kit is an upgraded model engine designed for enthusiasts who enjoy DIY projects and want a deeper understanding of engine mechanics.

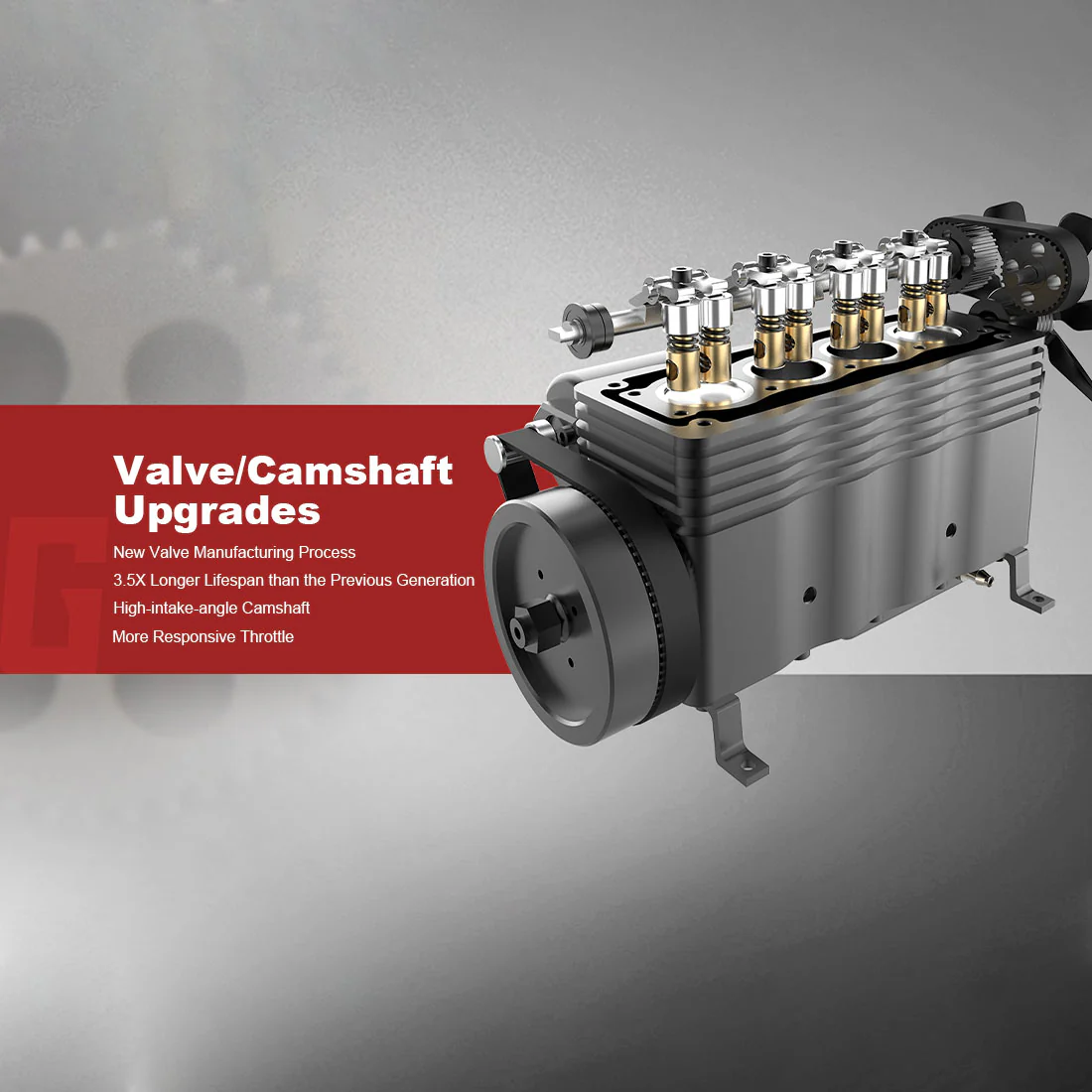

Valve/Camshaft Upgrade:
-Extended Lifespan: The valve manufacturing process has been improved, extending the lifespan by 3.5 times compared to the previous TOYAN L400 model.
- High-Angle Camshaft: This upgrade makes the throttle response more sensitive, enhancing the engine's performance.

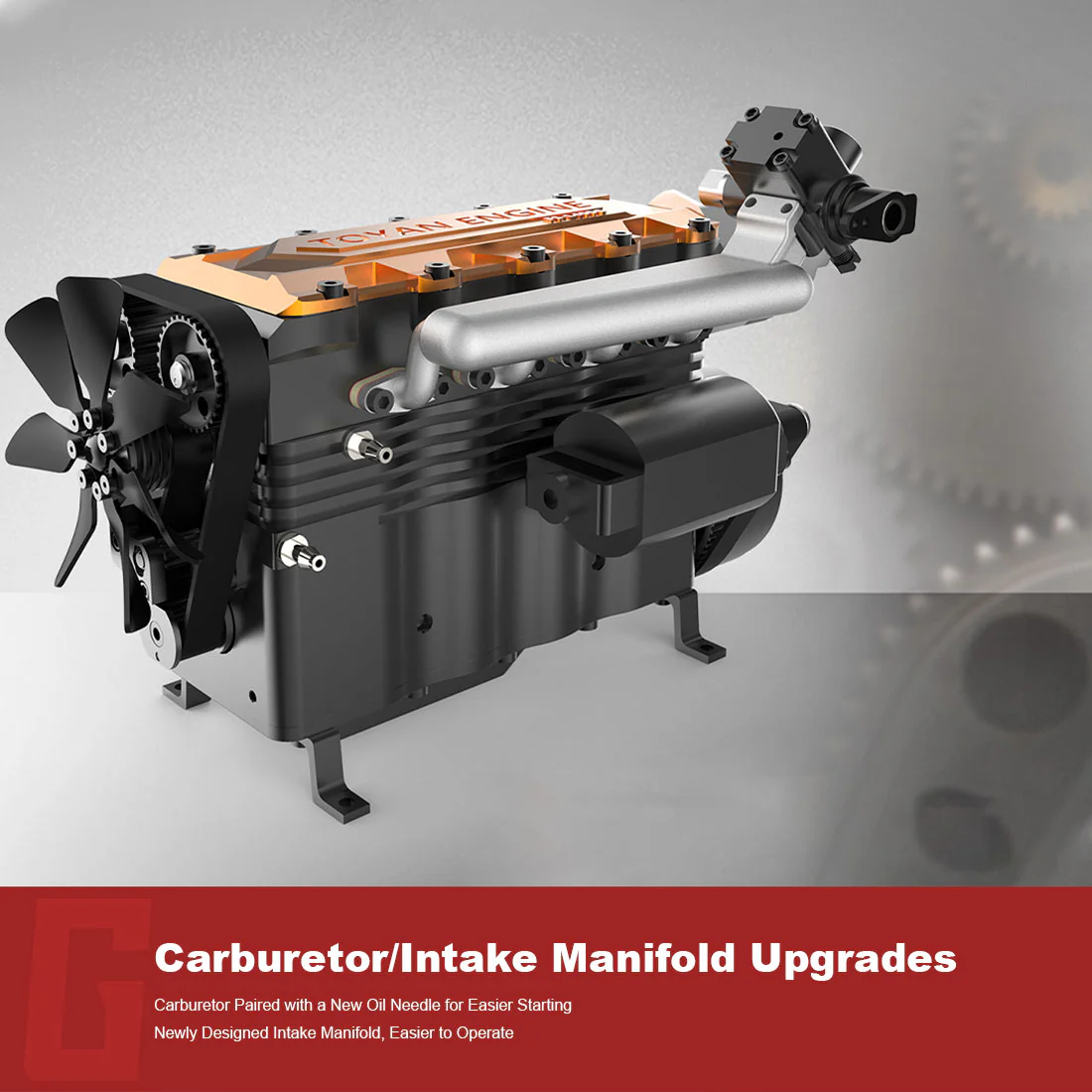

Carburetor/Intake Upgrade:
- Redesigned Carburetor: Features a matching fuel needle for easier engine startup.
- New Intake Manifold: Designed for user-friendly operation, improving the overall experience.

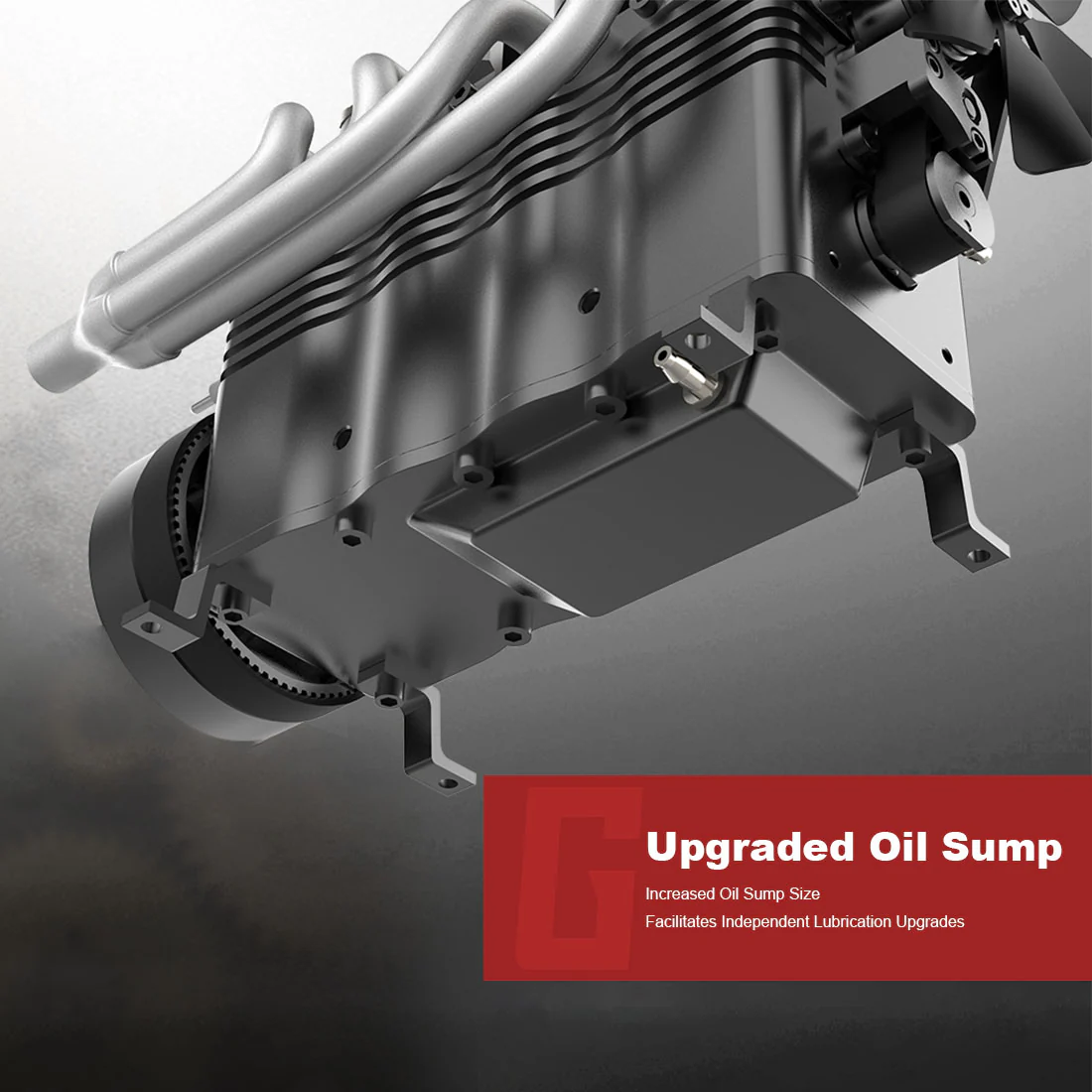

Oil Sump Upgrade:
- Enlarged Size: The oil sump has been enlarged to facilitate independent lubrication in future upgrades.

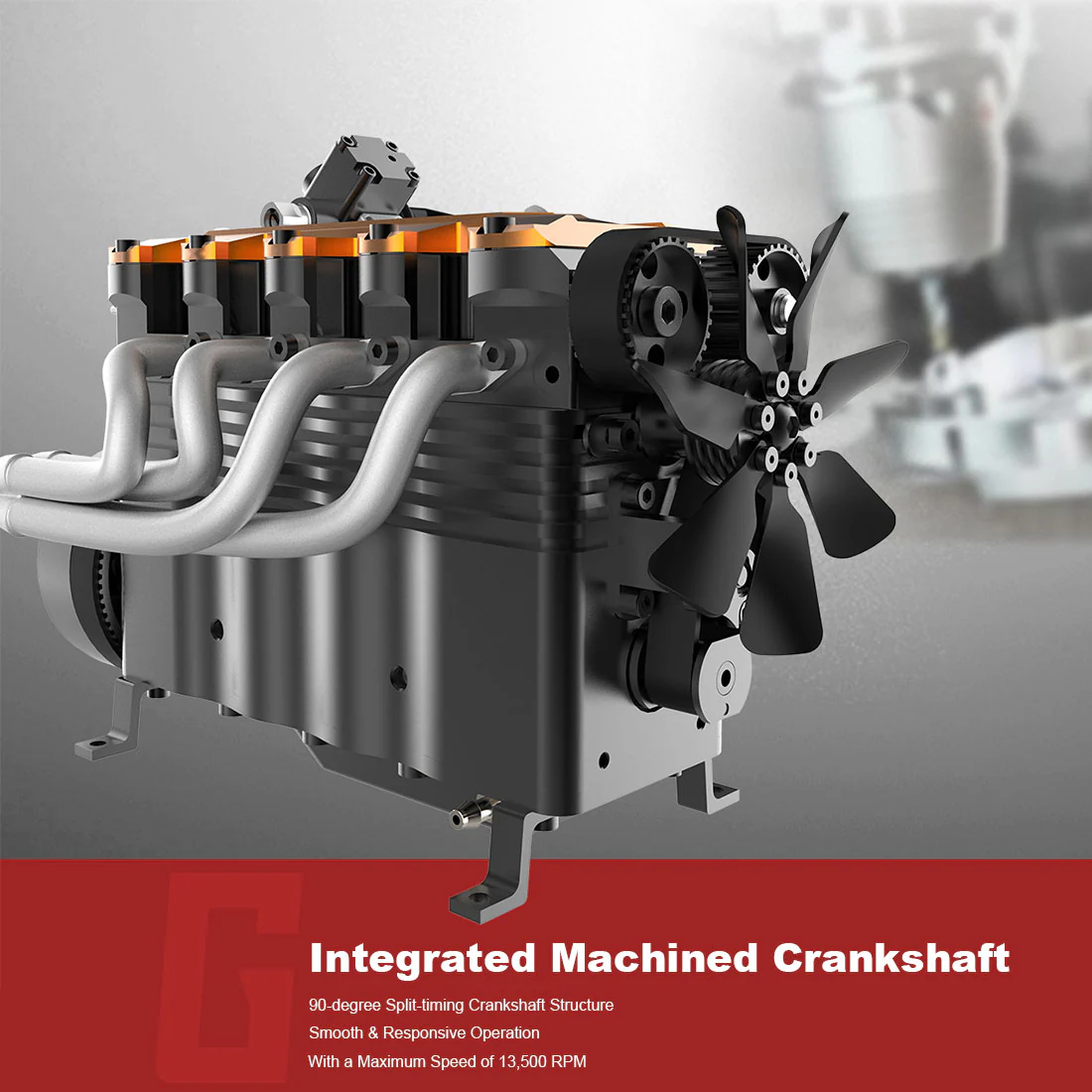

Integrated Crankshaft:
- 90-Degree Phased Structure: This design ensures smoother and more responsive operation, allowing the engine to reach a maximum speed of 13500rpm.

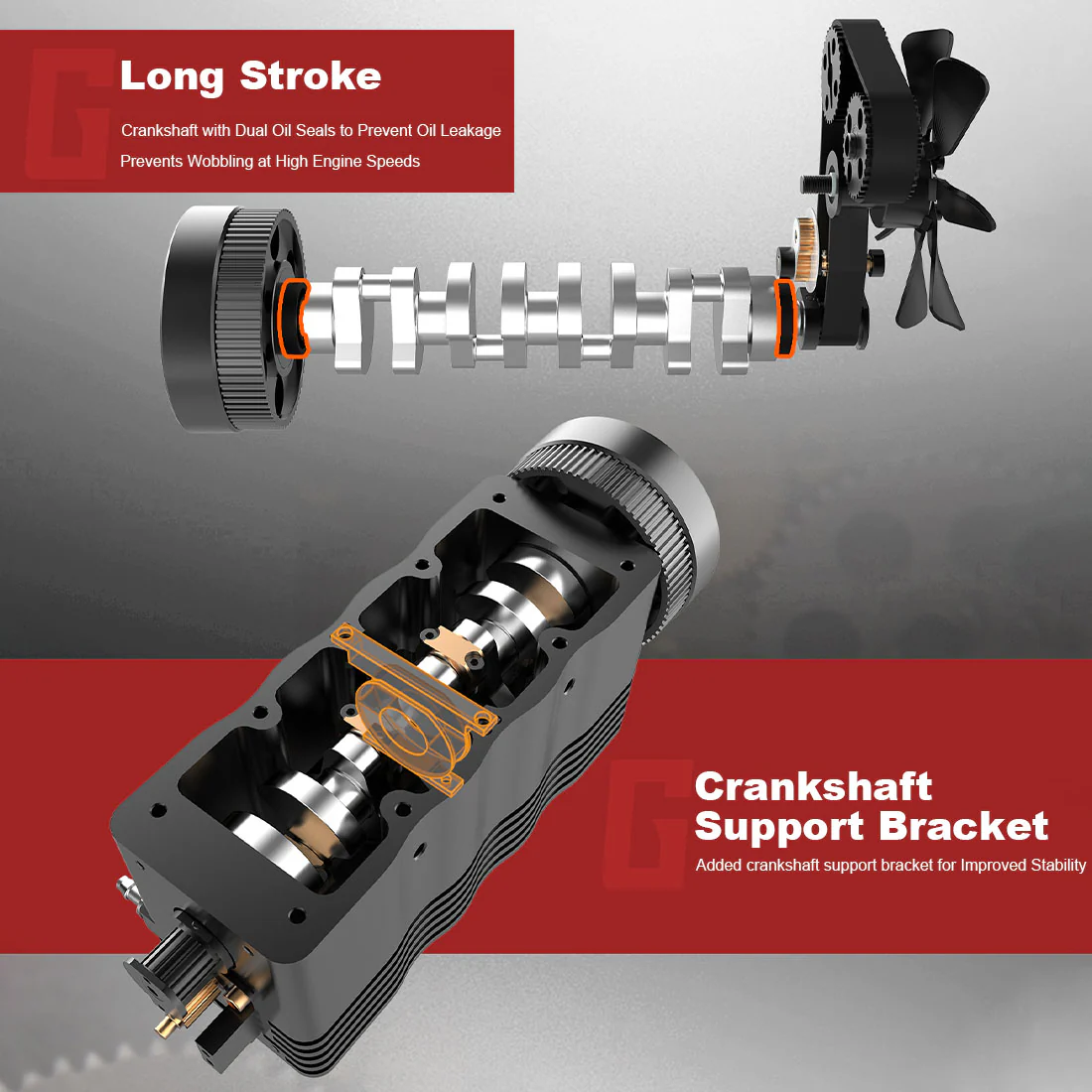

Crankshaft Support Bracket:
- Enhanced Strength: A new support frame has been added to improve the crankshaft's strength during high-speed operation, enhancing stability.

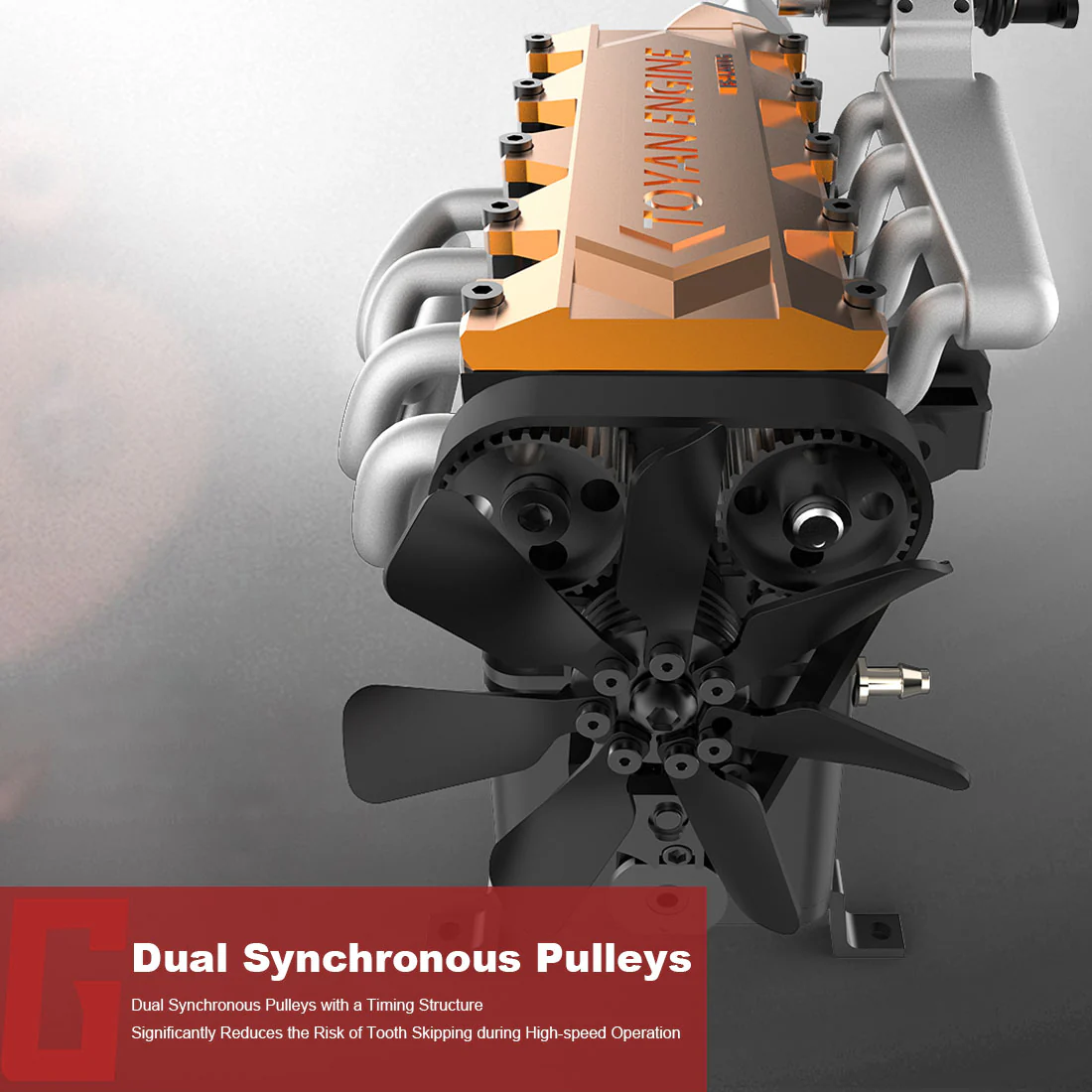

Dual Synchronous Pulleys:
- Reduced Risk: The dual synchronous pulley timing structure significantly reduces the risk of tooth skipping during high-speed operation.

Long Stroke:
- Dual Oil Seal Design: Prevents oil leakage and maintains stability during high-speed engine operation.

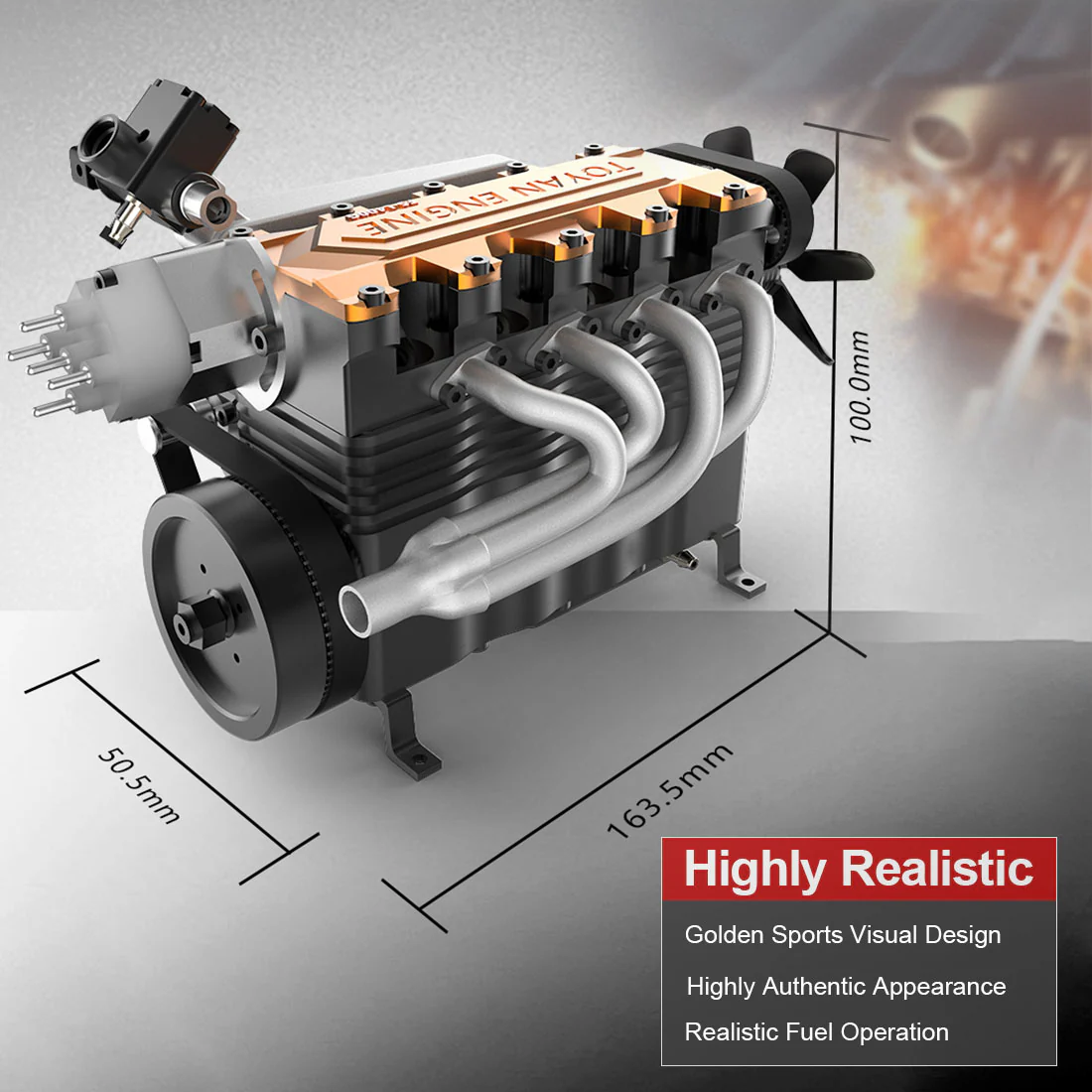

Highly Simulation - More Realistic:
- Sports-Inspired Design: The gold design gives the engine a highly simulated appearance, and it operates using real gasoline for an authentic experience.

Fun DIY:
- High-Precision Parts: The kit includes high-precision parts that are easy to assemble according to the provided instructions, making it an excellent educational tool for understanding engine structure and mechanical principles.

Age Recommendation: -16+

Warm Reminder:
- KIT Version: This TOYAN L400BGC engine is a kit and requires assembly. It does not come with accessories like a base, sparking plugs, ignition module lithium battery, CDI, fuel tank & pipe, etc.
- Follow Instructions: It is crucial to follow the assembly instructions to avoid damaging the engine.
- Customer Support: For any advice or questions, contact the support team at service@enginemodelkit.com.

This engine kit is ideal for hobbyists, students, and anyone interested in mechanical engineering, offering both educational value and the satisfaction of building a functional, high-performance model engine.

Additional purchase:
Sparking plug*8，
11.1V ignition module lithium battery
CDI
Fuel tank & Tubing

More Details:
.Material: Metal
.Brand: TOYAN
.Model: FS-L400BGC
.Form: DIY Kit Version
.Engine Type: Gasoline Internal Combustion Engine
.Valve Mechanism Type: OHC (Overhead Camshaft)
.Displacement: 14cc (4 x 3.5cc)
.Cylinders: Inline Four-Cylinder
.Stroke: Four-Stroke
.Bore Diameter: 16.6mm
.Stroke Length: 17.0mm
.RPM Range: 3200-12500rpm
.Power Output: 3.05hp
.Cooling System: Water-Cooled + Air-Cooled
.Lubrication Method: Splash Lubrication (Upgradable to Independent Lubrication)
.Start Mechanism: Electric Start
.Ignition Method: CDI Ignition (Not included)
.Spark Plug Type: 1/4-32 Thread ME8 Type Spark Plug (Not included)
.Start Power Source: 6-12V, Recommended 2S-3S Lipo Battery (Not included)
.Fuel Type: 92# and Above Gasoline
.Lubricating Oil Type: Common Lubricating Grease (Regularly applied to the camshaft)
.Product Weight: 1410g
.Product Dimensions: 169 x 140.5 x 99mm
.Package Dimensions: 21.5 x 21.5 x 17cm
.Package Weight: 2700g
.Packing: Box

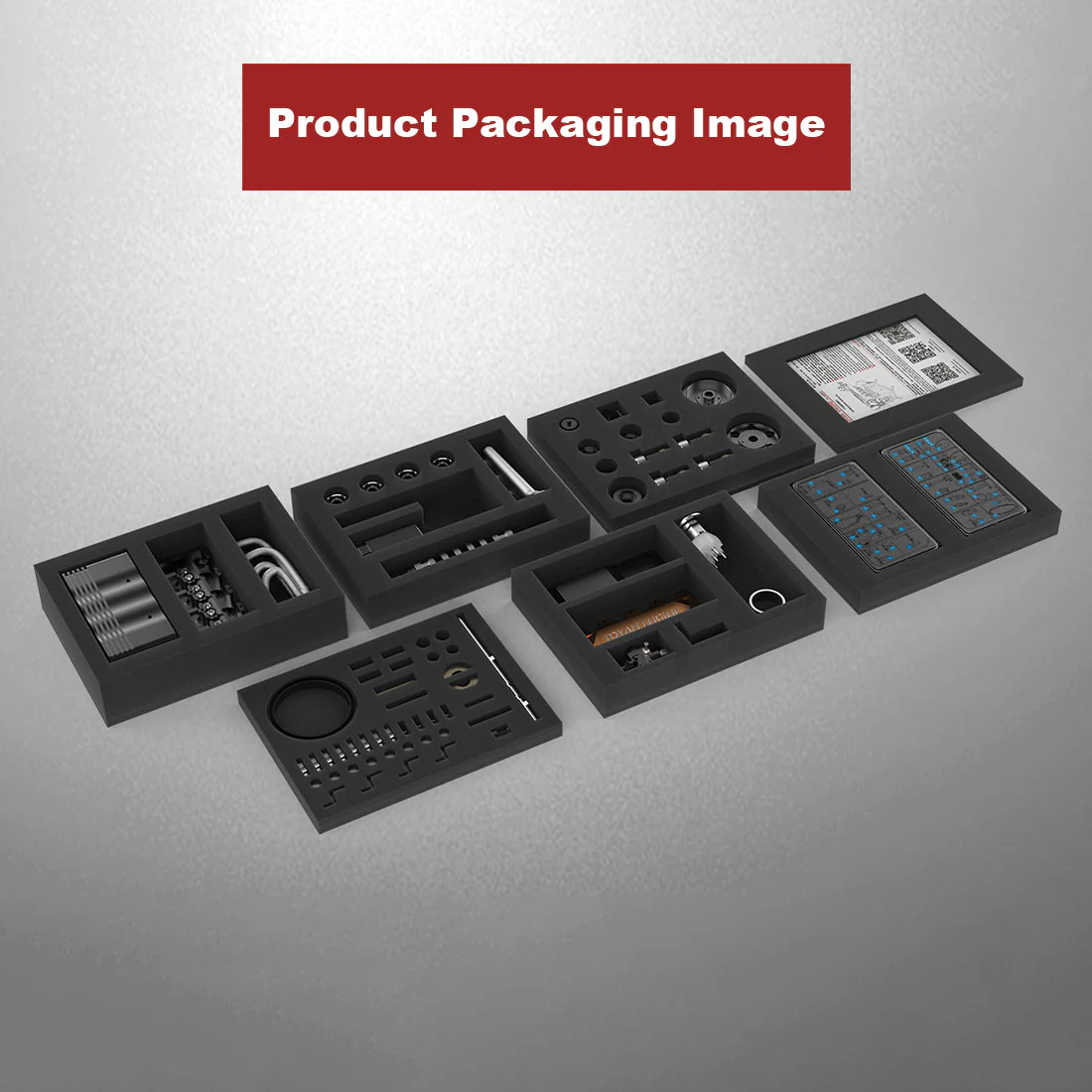

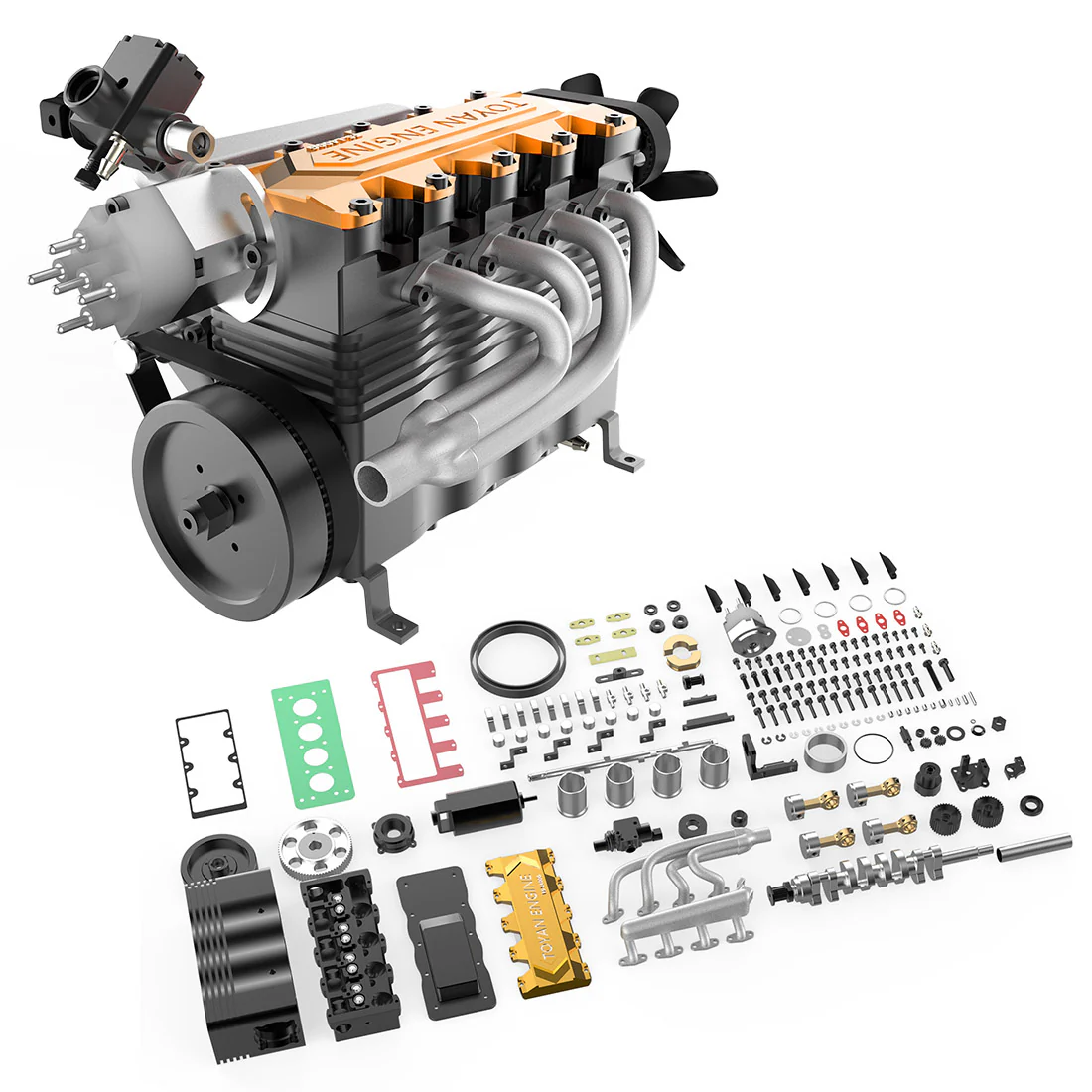

Package List:
1 x TOYAN FS-L400BGC Engine Model Kit (DIY)
1 x Tool Set for TOYAN Engine
1 x Instructions
