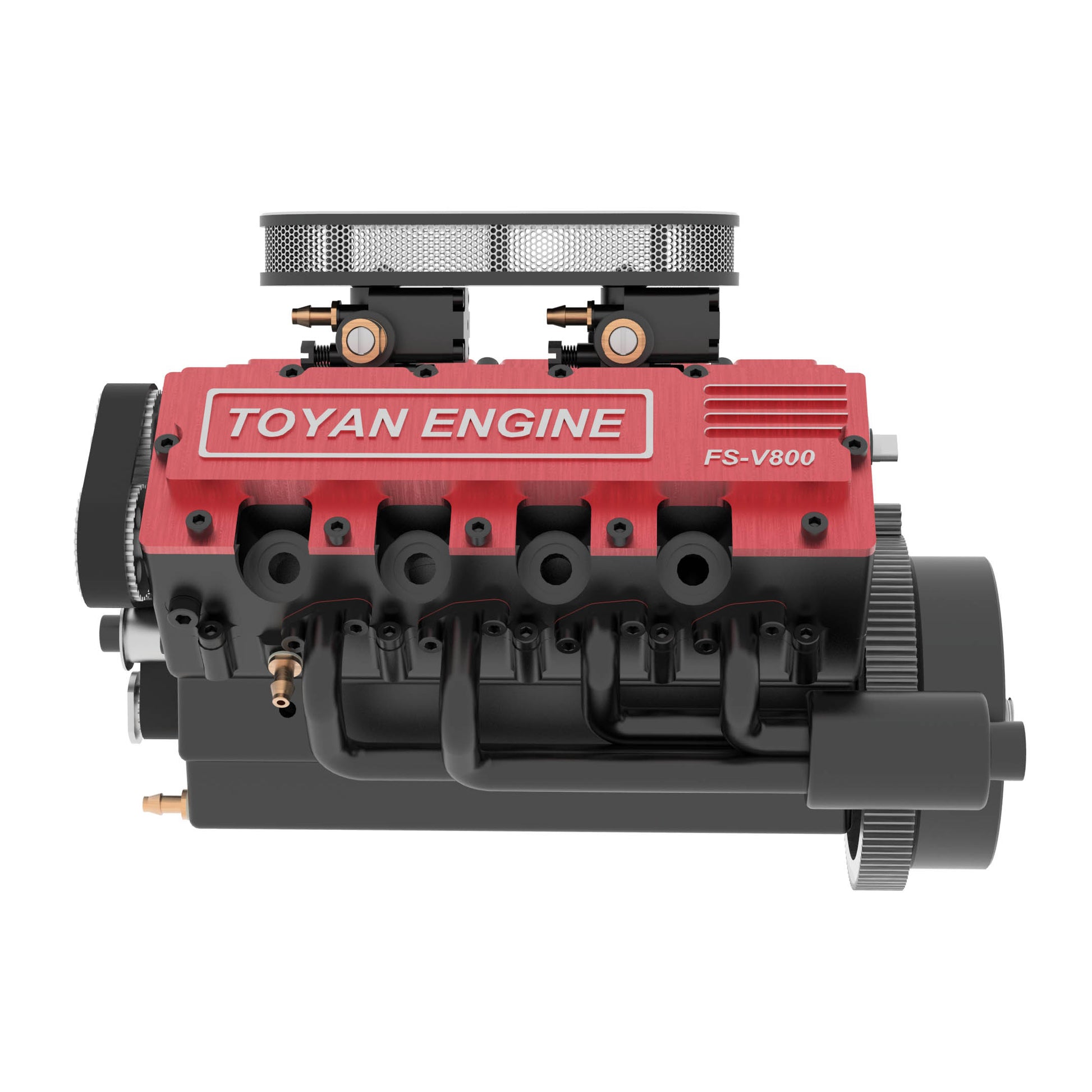

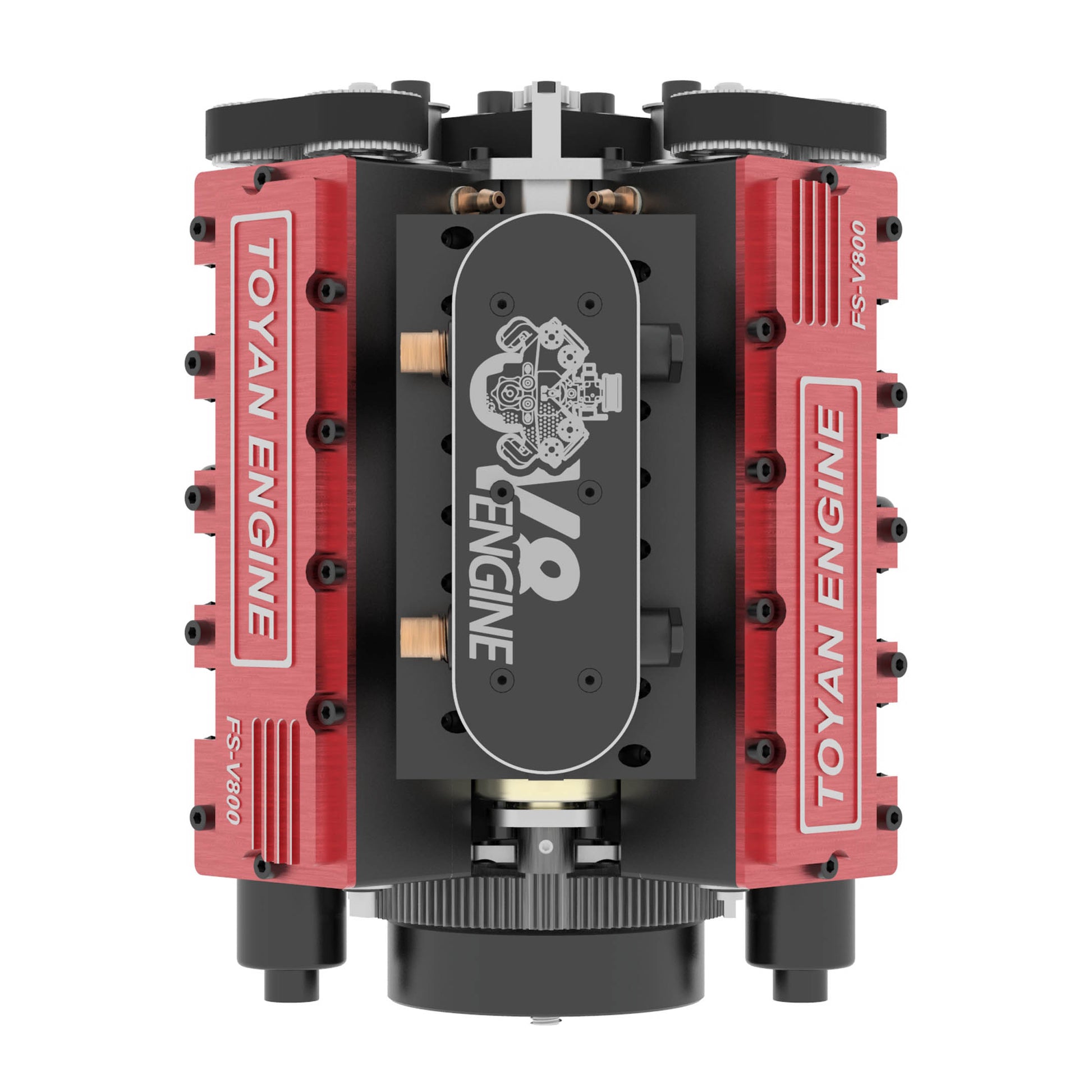

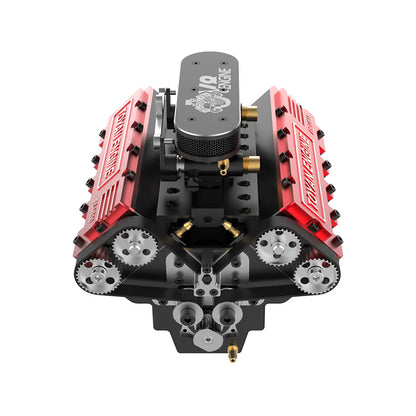

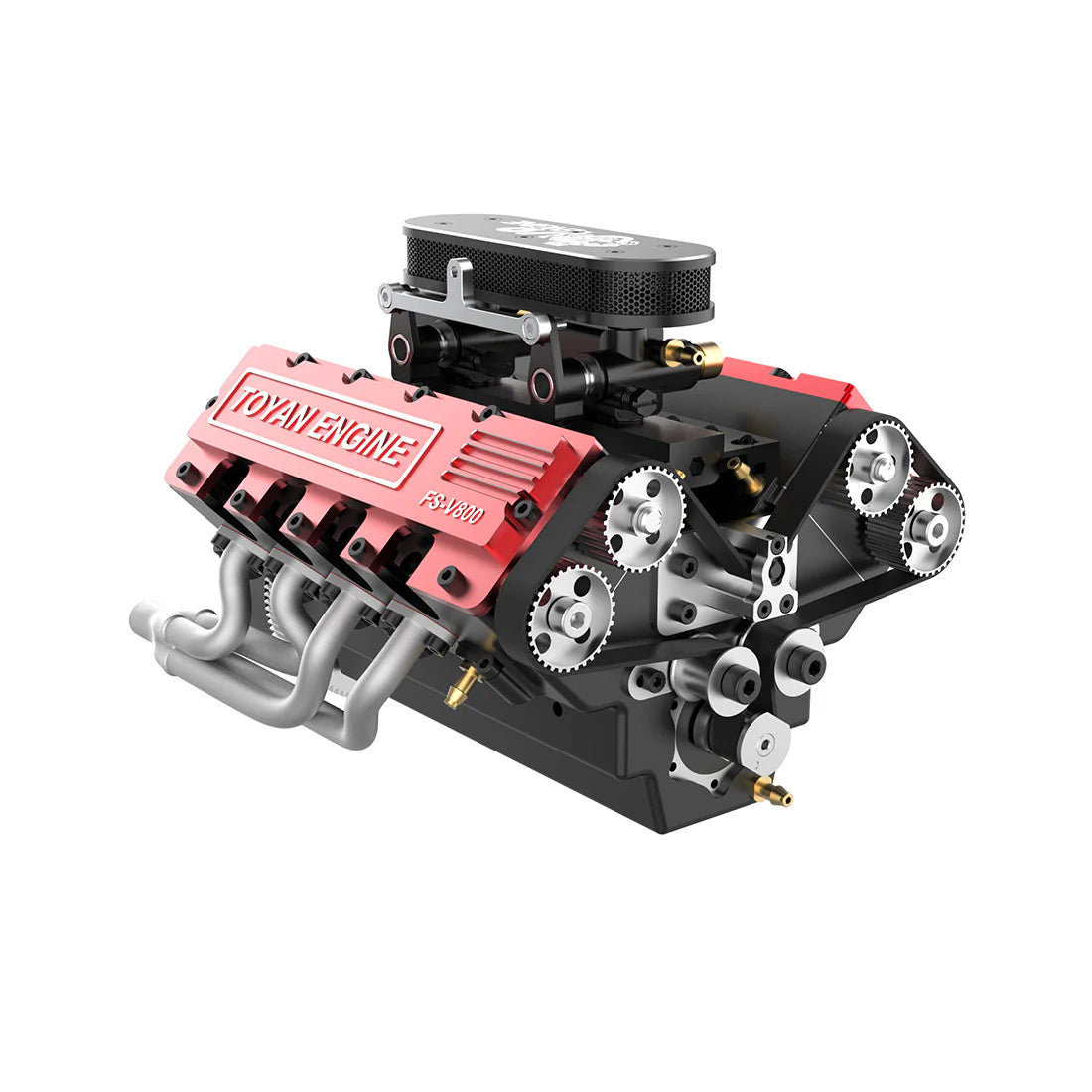

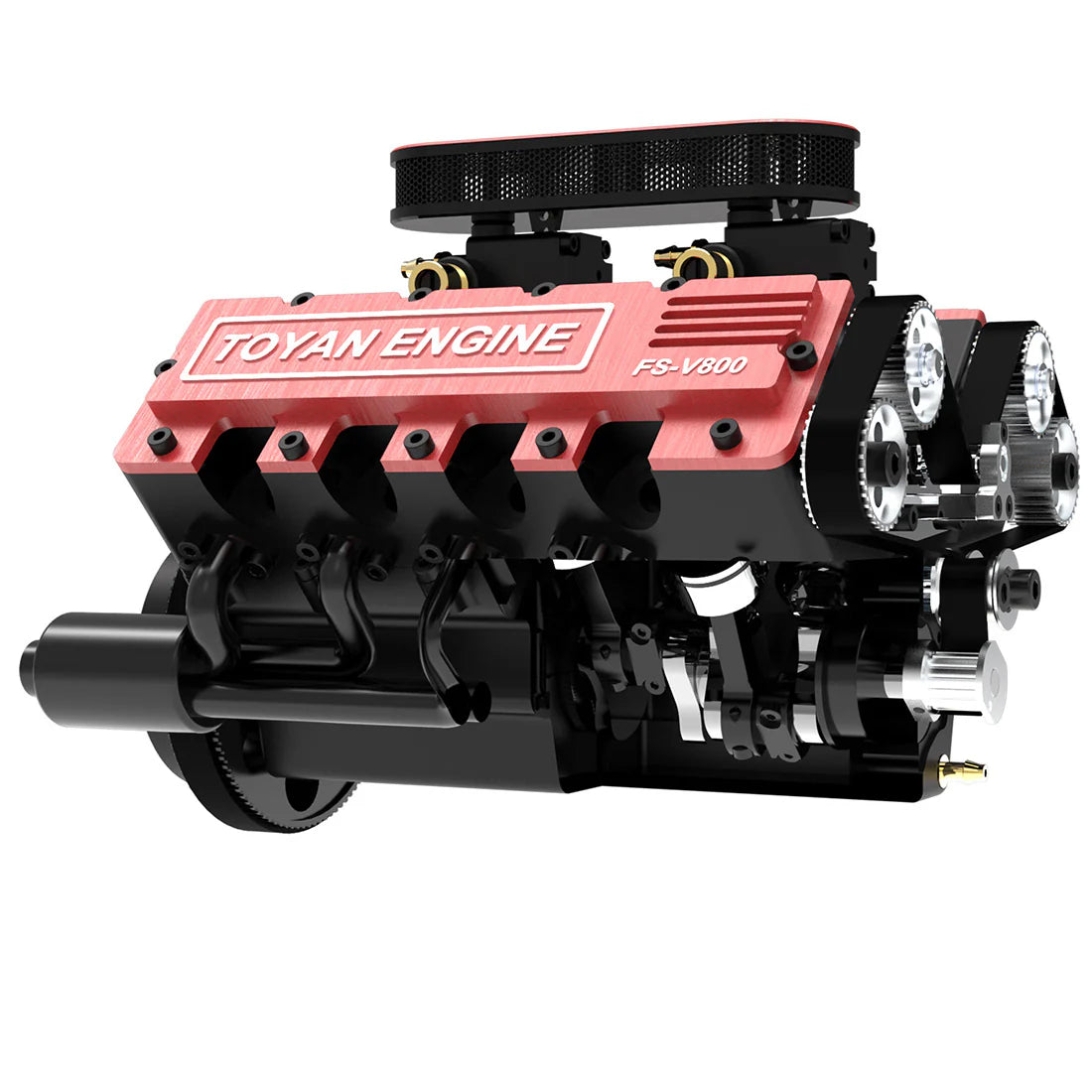

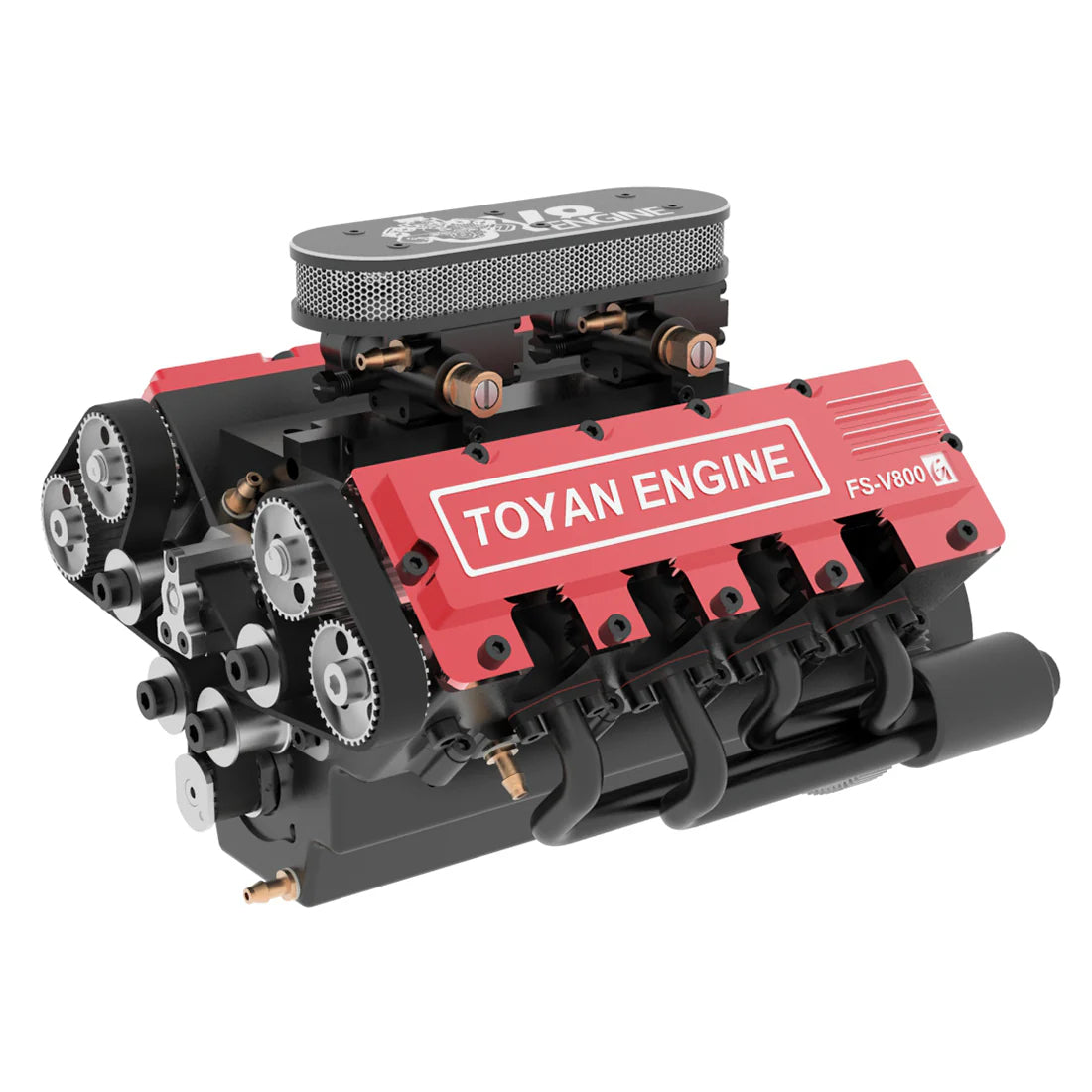

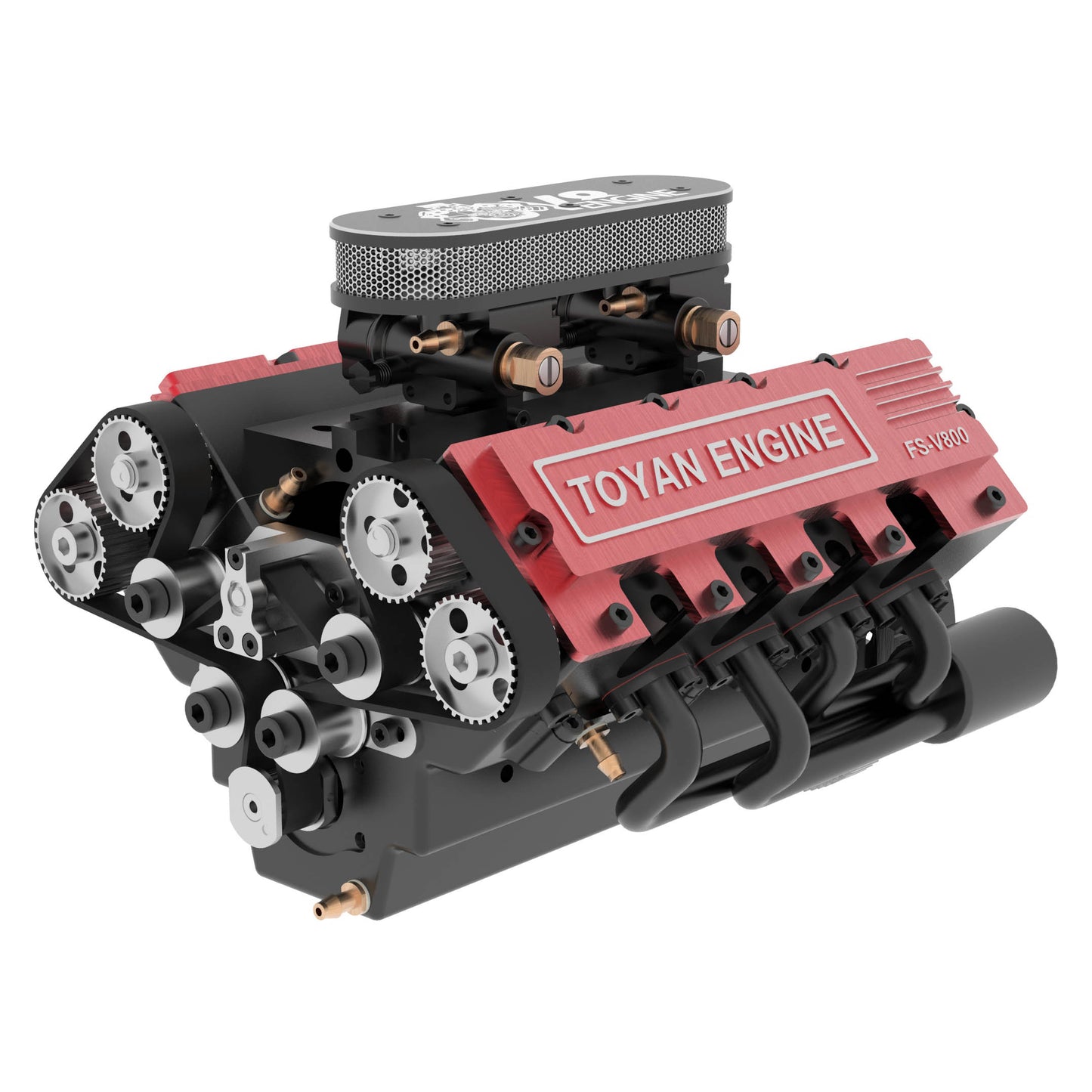

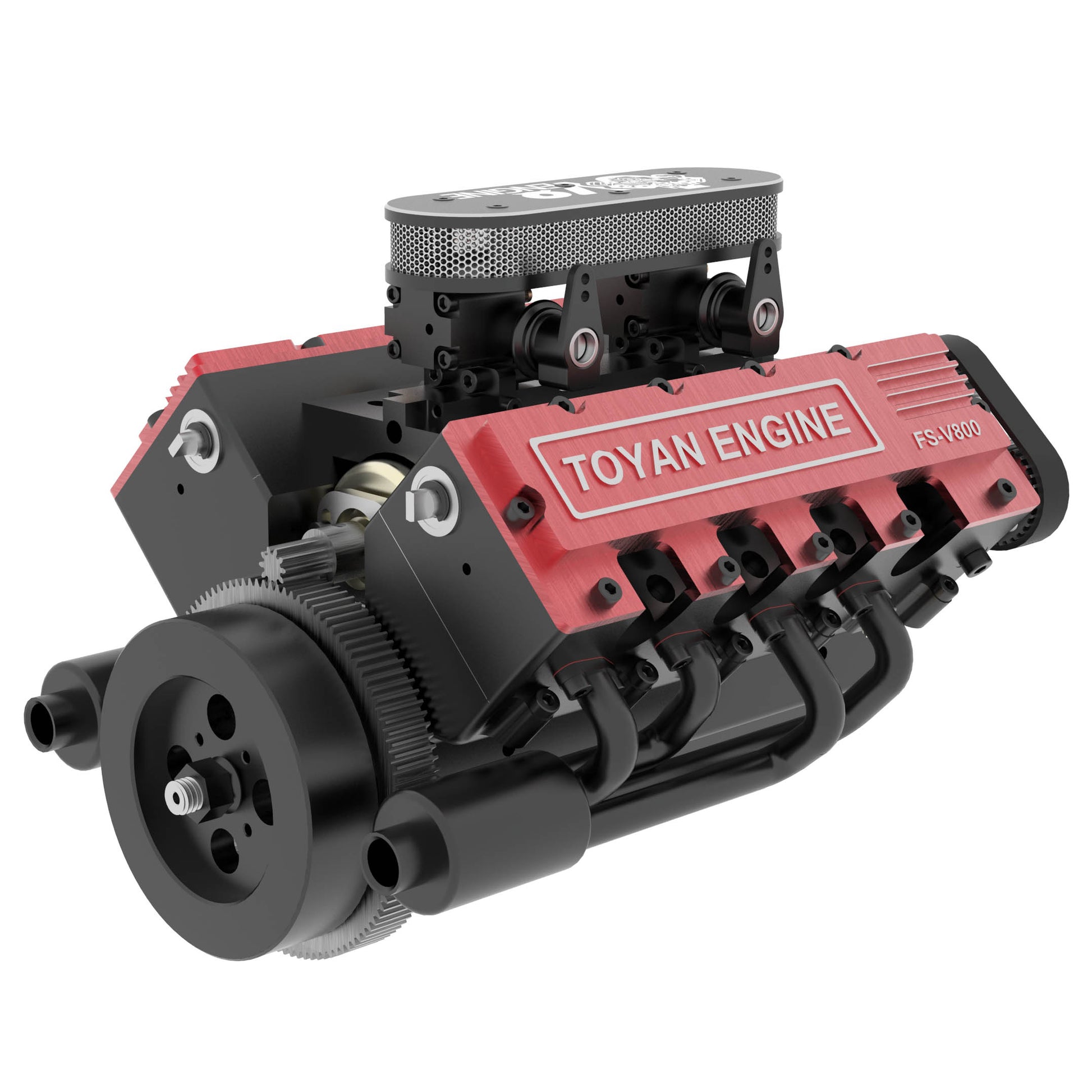

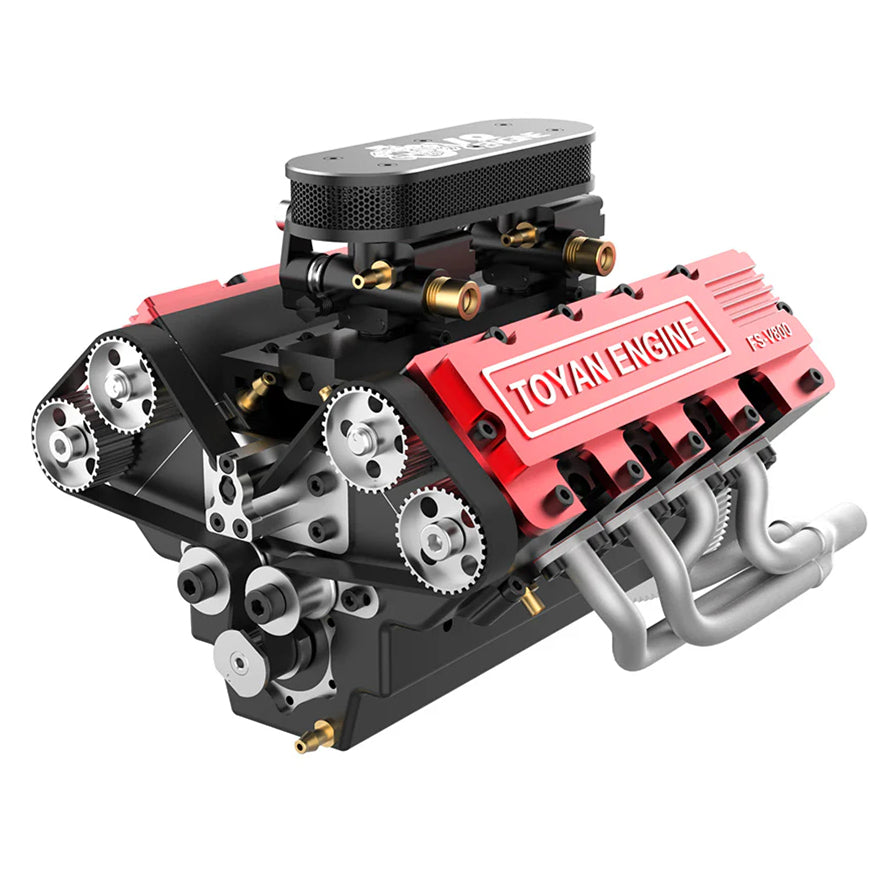

TOYAN V8 Engine FS-V800 1/10 Scale 28cc Nitro 8 Cylinder 4 Stroke Engine That Works V8 Engine Model Kit for RC Car Ship

TOYAN V8 Engine DIY Set, Eight-cylinder Four-stroke, Water Cooling System, Methanol Engine,167*129*128mm, 1:10 Scale, For RC Car and Boat

Parameters:
.Model: FS-V800
.Form: DIY Version
.Scale: 1/10
.Cylinder: V-type 8 Cylinder
.Stroke: 4 Stroke
.Displacement: 28cc (3.5cc* 8)
.Bore: 16.67mm
.Stroke: 17.00mm
.Angle: 90°
.RPM: 2800-12500rpm
.Power: 4.35ps@11200rpm
.Cooling Mode: Water Cooling
.Starting Mode: Electric (including starting motor)
.Ignition Mode: 2 4-in-1(or 8-in-1) stabilized ignition modules
.Type of Electric Plug: F-type 4-stroke electric plug
.Lubrication Mode: Splash Lubrication (add a small amount of grease on the cam)
.Fuel Type: 20-25% nitro fuel
.Starting Voltage: 7.4V lithium battery
.Product Dimensions: 167*129*128mm
.Product Weight: 2800g
.Package Weight: 2950g

Know More about TOYAN V8 Engine

The TOYAN V8 Engine is a highly detailed and functional miniature engine model designed for enthusiasts, hobbyists, and educators.

Key Features:

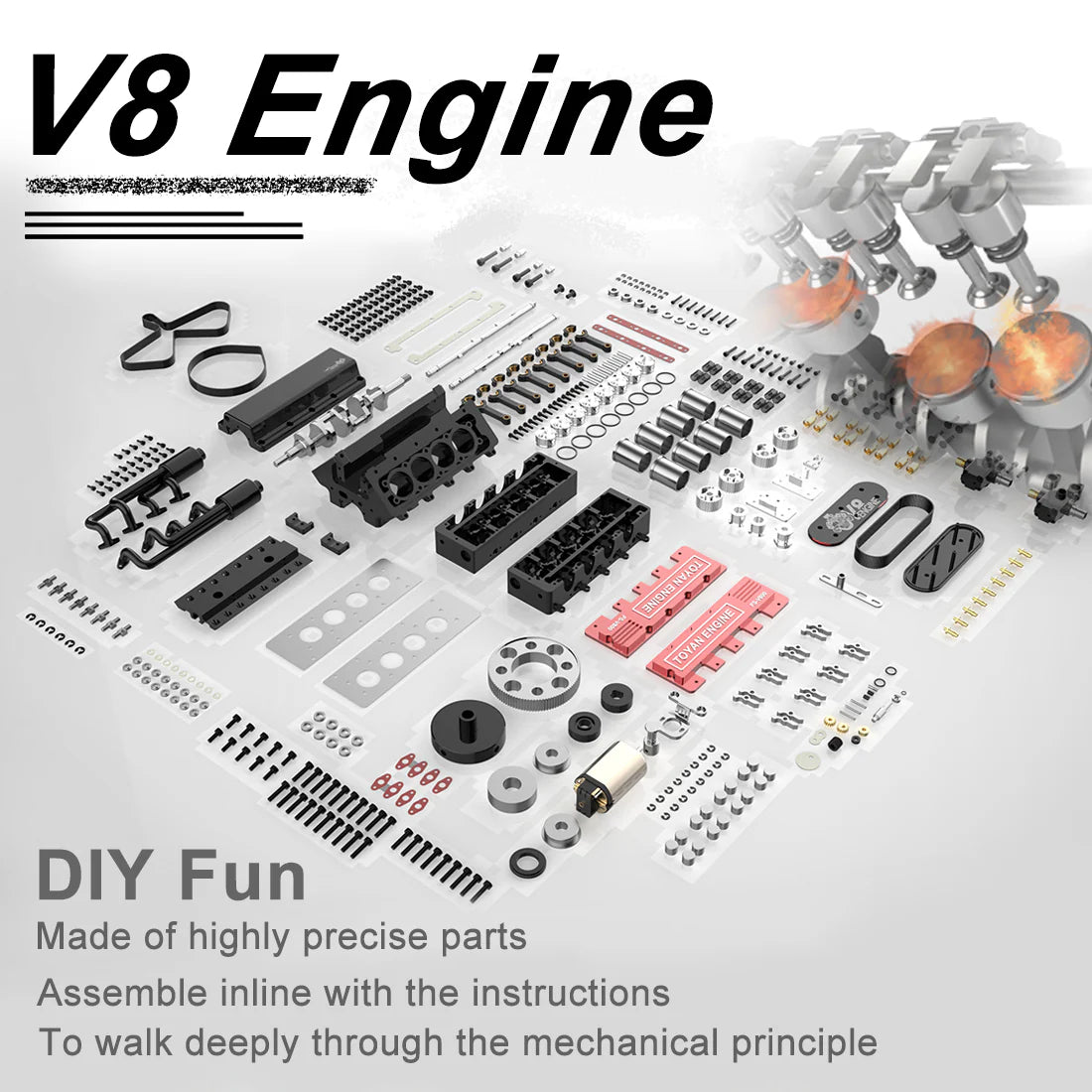

1. DIY Fun
   - Made of exact parts.
   - Requires assembly following detailed instructions.
   - Provides a deep understanding of mechanical principles.

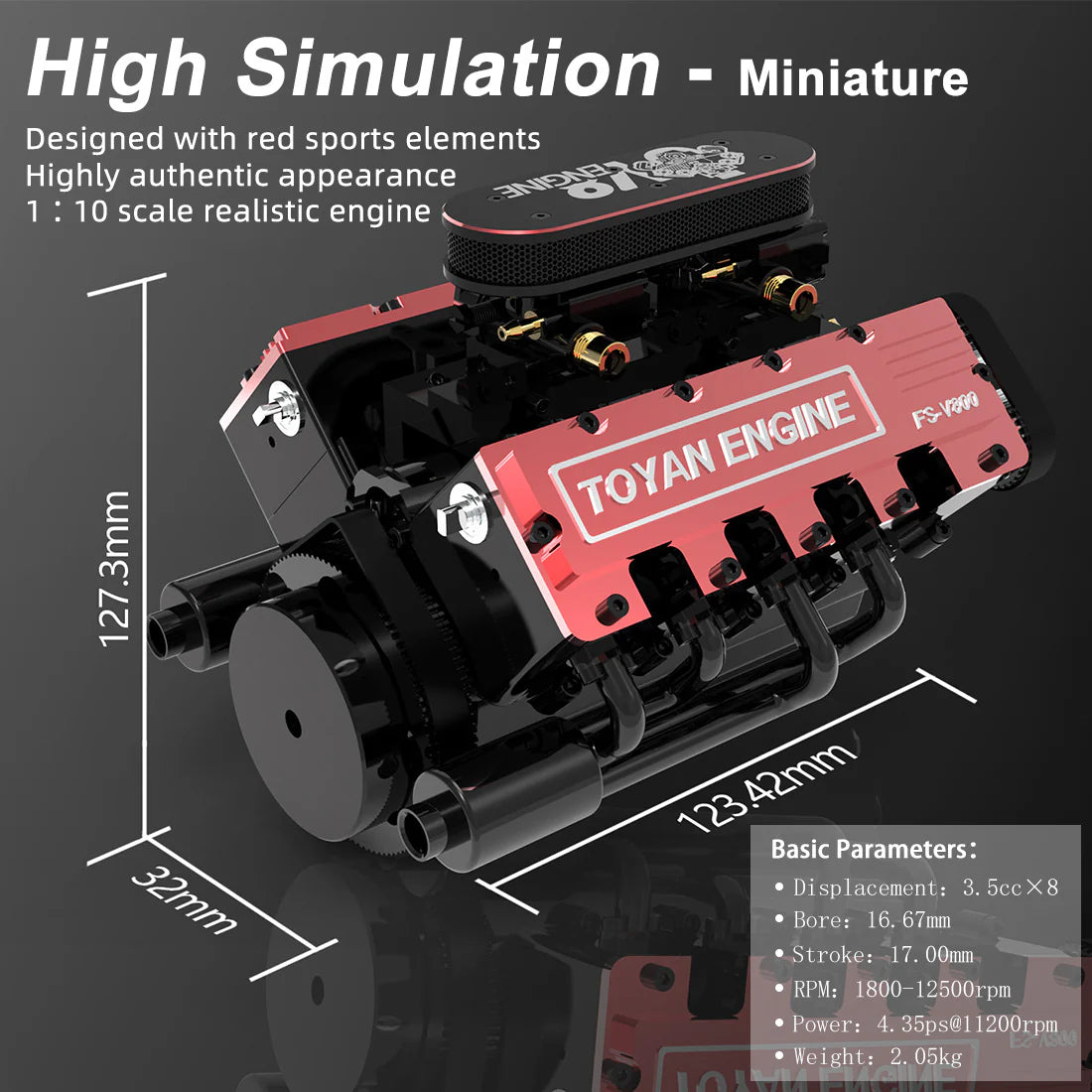

2. High Simulation Miniature
   - Designed with red sports elements for an authentic look.
   - 1:10 scale realistic engine model.

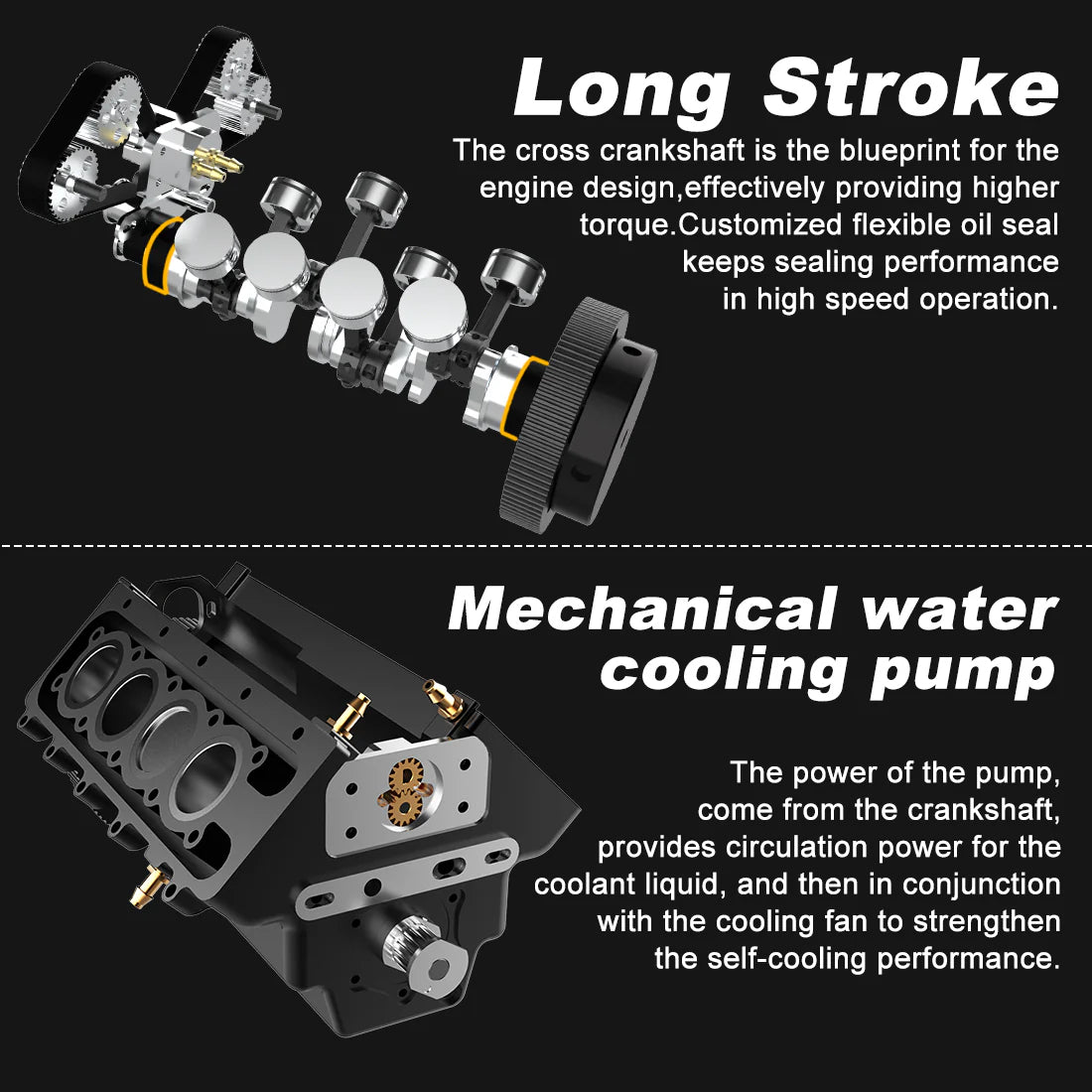

3. Long Stroke Design
   - Cross crankshaft design for higher torque.
   - Customized flexible oil seal ensures sealing performance during high-speed operation.

4. Mechanical Water Cooling Pump
   - Powered by the crankshaft to circulate coolant.
   - Works with a cooling fan to enhance self-cooling performance.

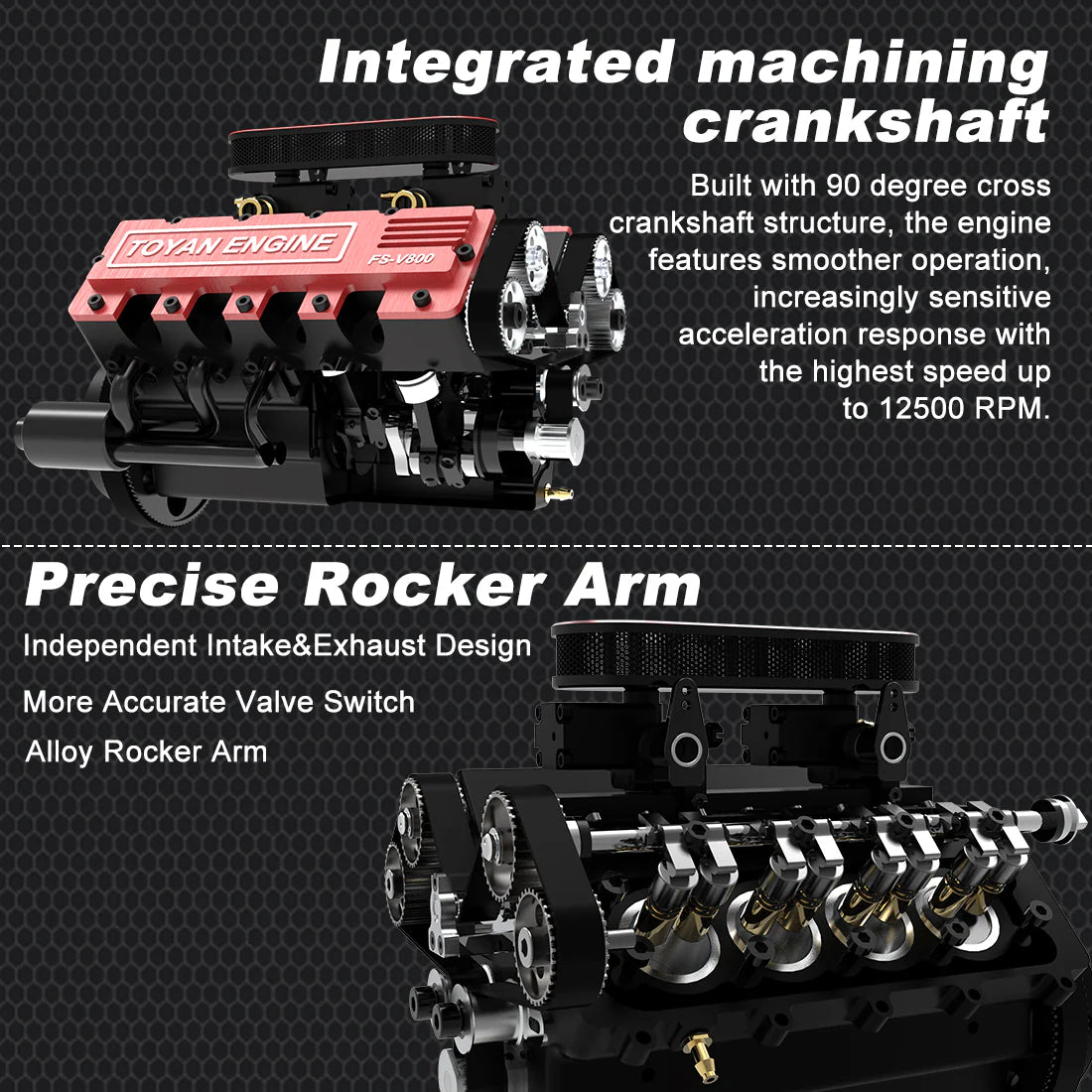

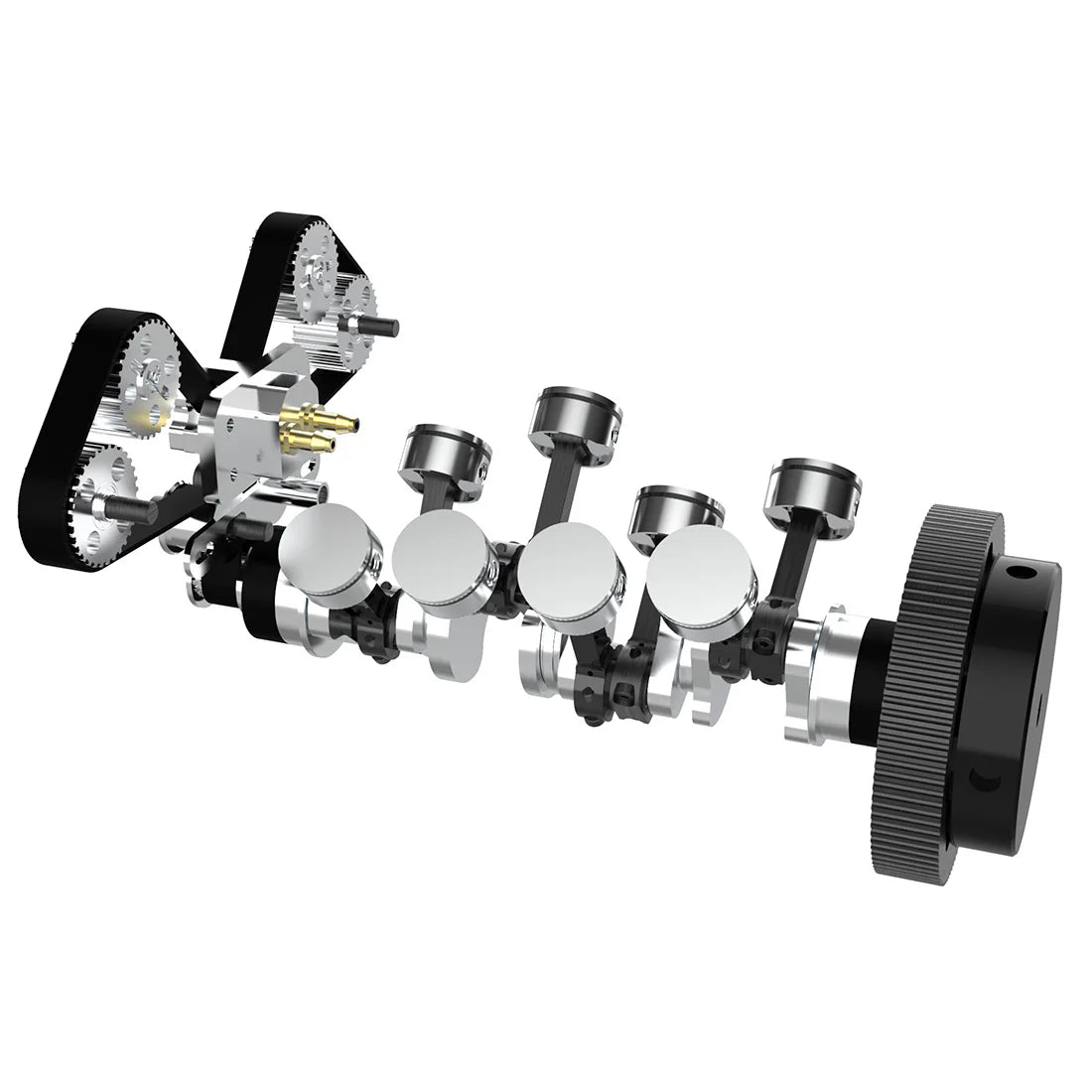

5. Integrated Machining Crankshaft
   - 90-degree cross crankshaft structure for smoother operation.
   - Sensitive acceleration response with a maximum speed of 12,500 RPM.

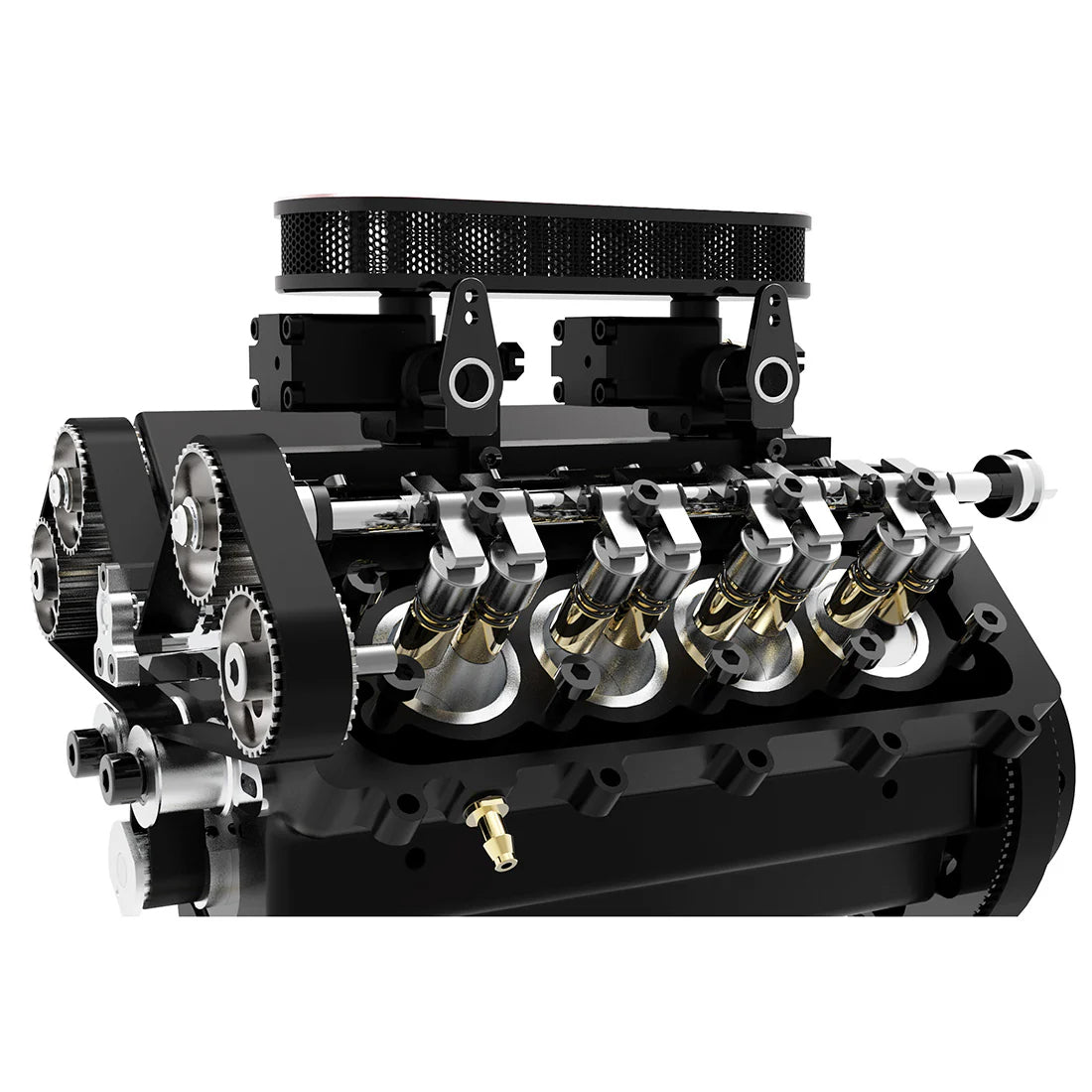

6. Precise Rocker Arm
   - Independent intake and exhaust design.
   - Accurate valve switch mechanism.
   - Durable alloy rocker arm.

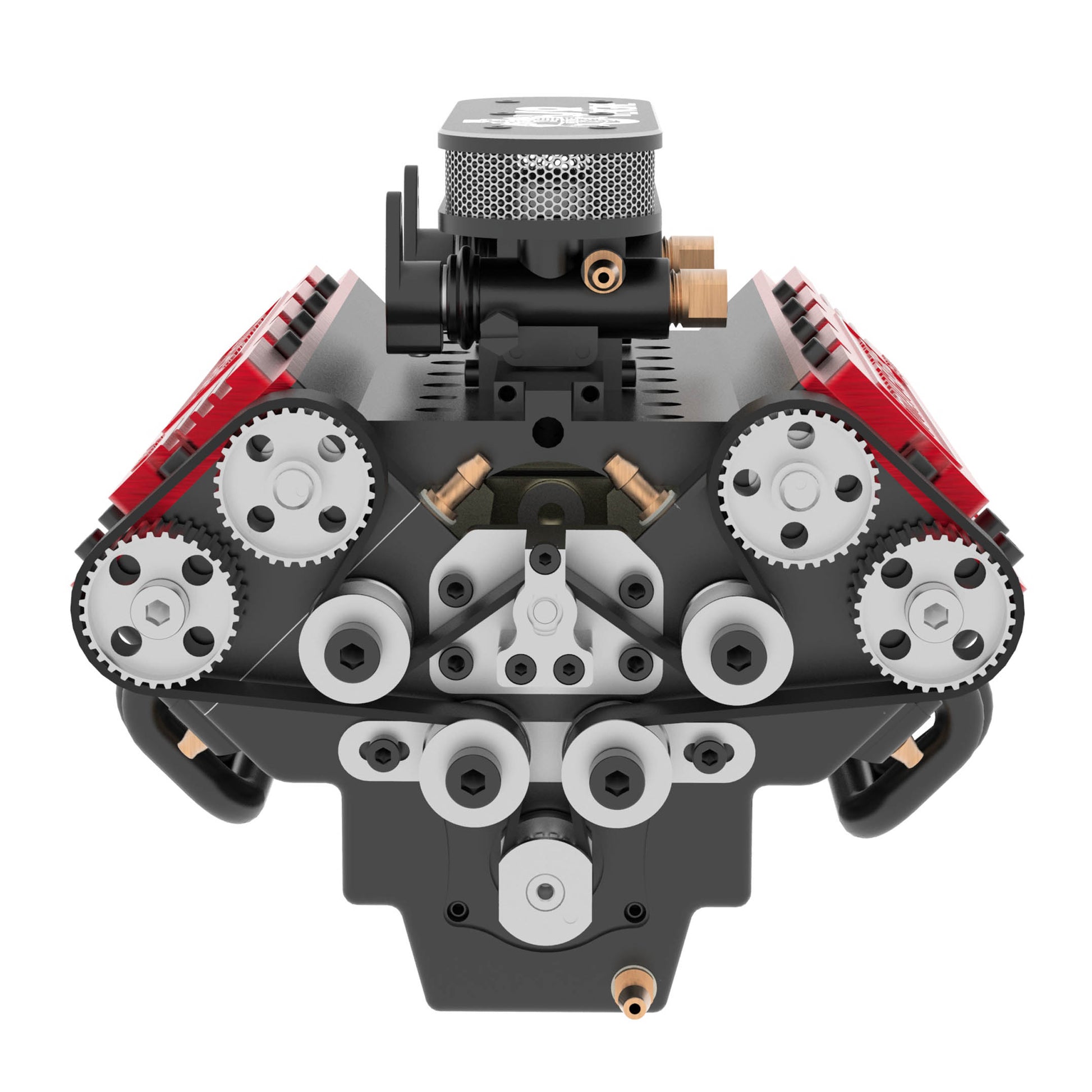

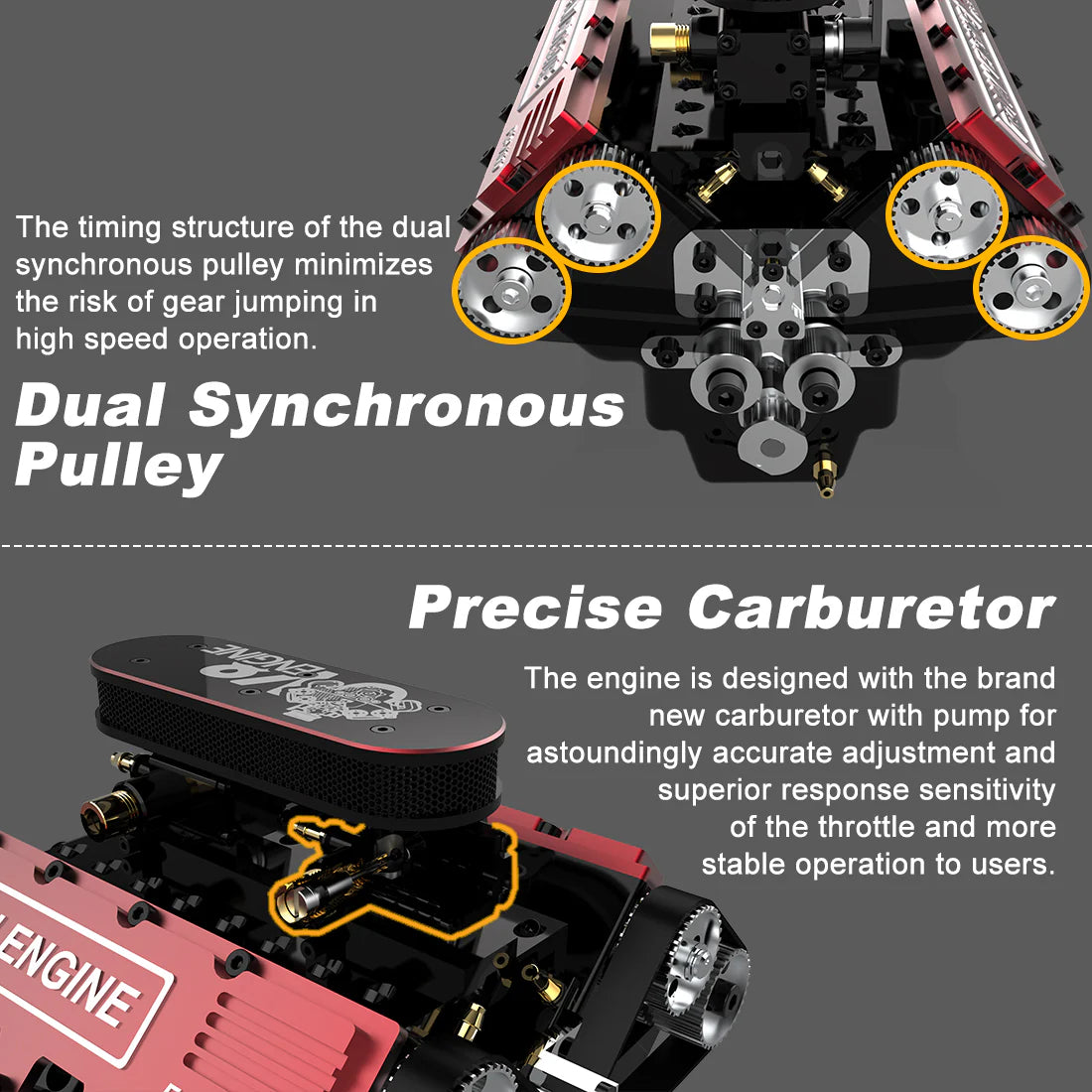

7. Dual Synchronous Pulley
   - Timing structure minimizes gear jumping during high-speed operation.

8. Precise Carburetor
   - Equipped with a pump for accurate throttle adjustment.
   - Superior response sensitivity and stable operation.

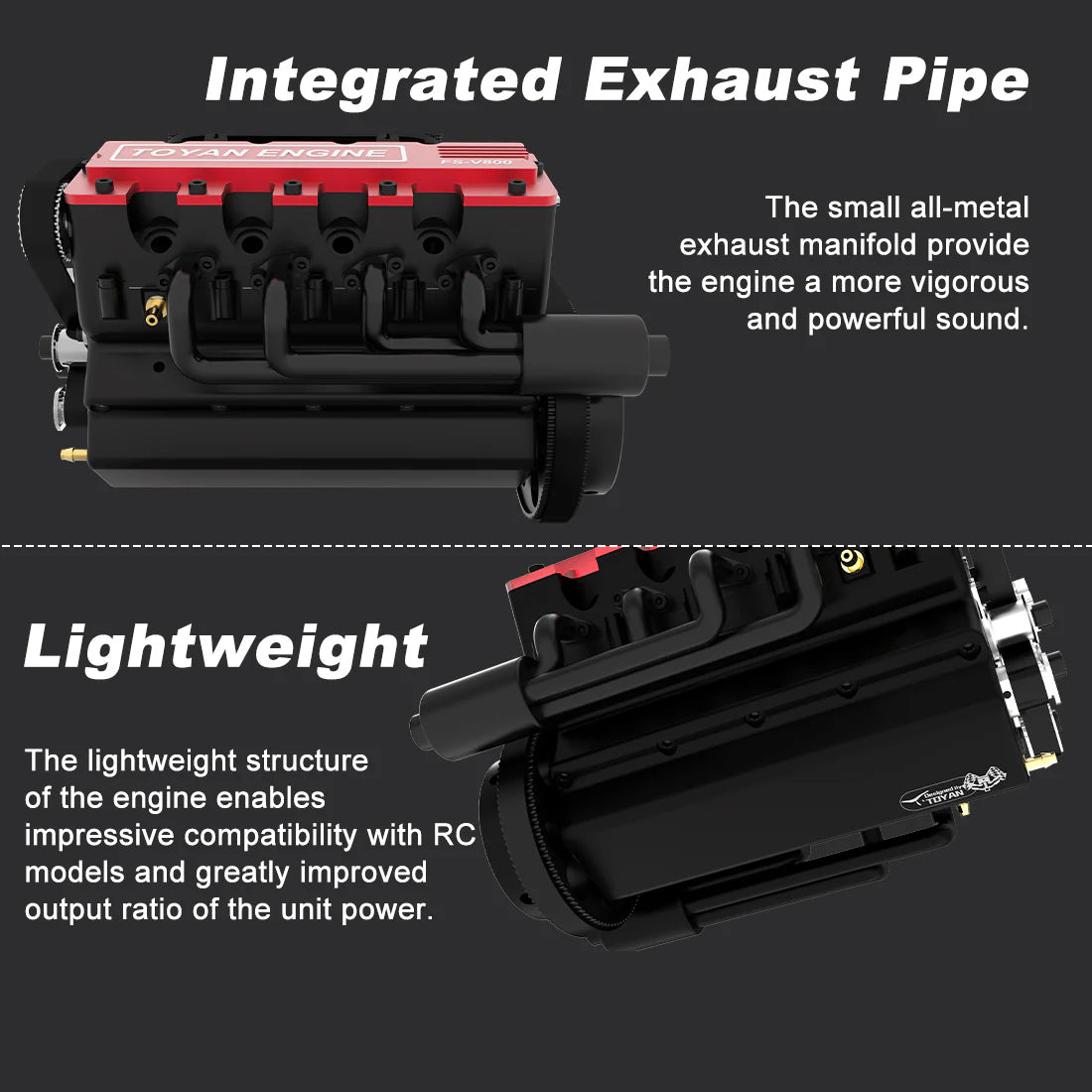

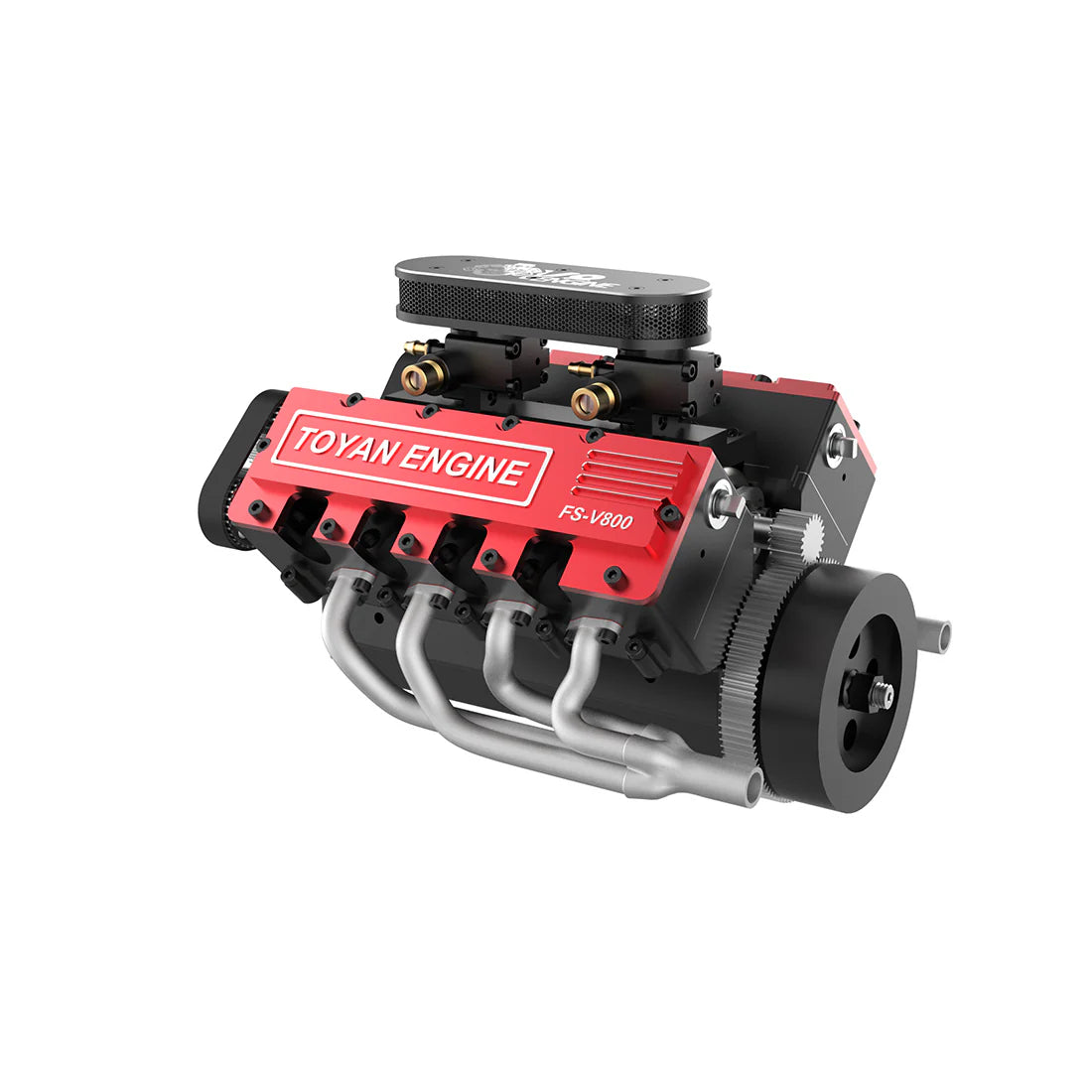

9. Integrated Exhaust Pipe
   - An all-metal exhaust manifold is used for a vigorous and powerful engine sound.

10. Lightweight Design
    - Enhances compatibility with RC models.
    - Improves power-to-weight ratio.

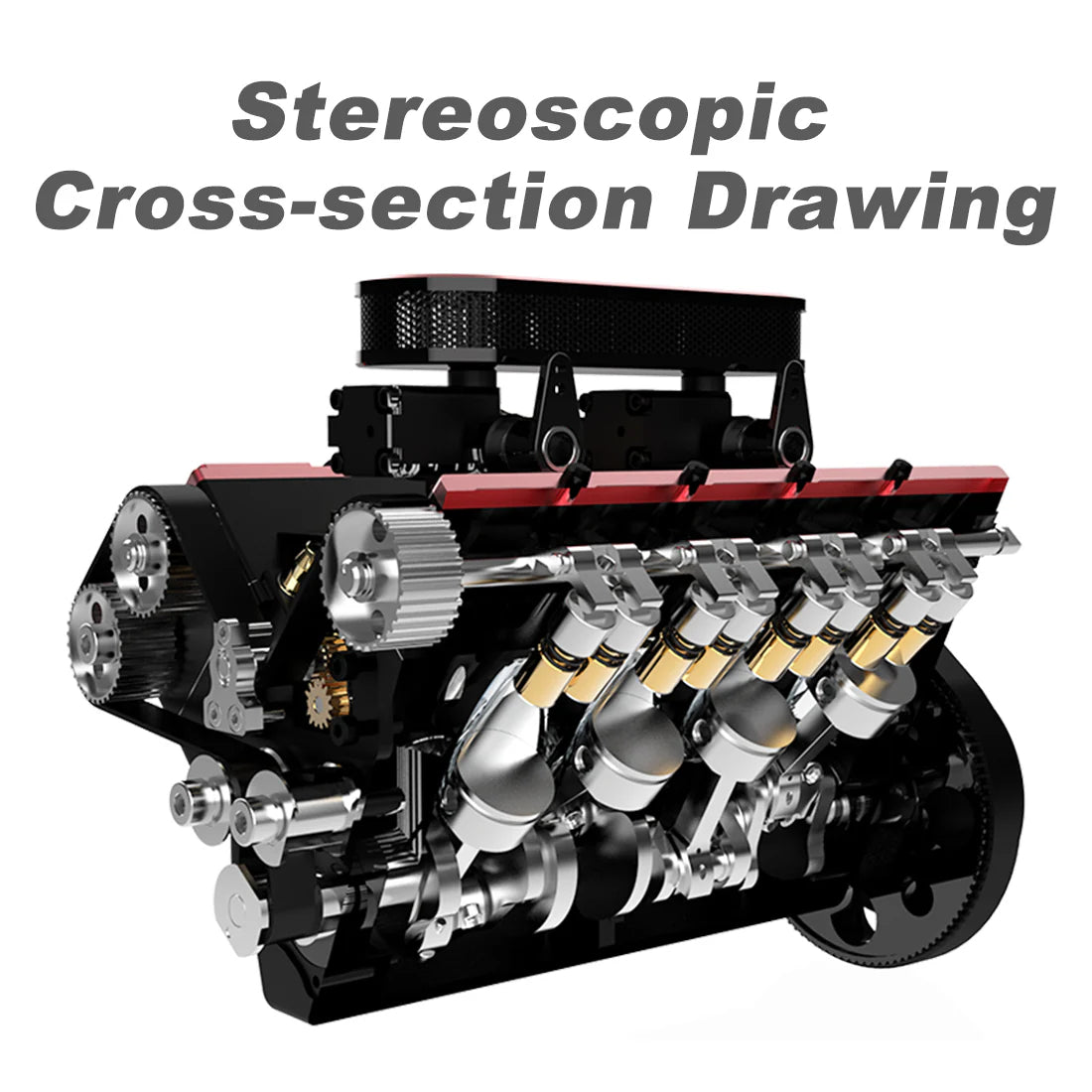

11. Stereoscopic Cross-section Drawing
    - Provides a detailed view of the engine's internal structure.

12. Wide Application
    - Perfect for desktop display, RC model modifications, mechanical experiments, or as a high-end gift for model enthusiasts.

Warm Tips:
- The engine comes in a KIT version and requires assembly.
- Water cooling accessories, Fuel tank & pipe, Sparking plug, 7.4 &11.1V lithium-ion battery, and CDI are sold separately.
- Follow the instructions carefully to avoid damage or danger.
- Recommended for ages 14+.

For any questions, contact: service@enginemodelkit.com.

This TOYAN V8 Engine is an excellent choice for those interested in mechanics, model building, or simply looking for a unique and educational project.

Package List:
1* TOYAN FS-V800 Engine Kit (DIY Set)
1* Instructions

Additional purchase：
Sparking plug*8
11.1V Ignition module lithium-ion battery
7.4V lithium-ion battery
CDI*2
Fuel Tank & Oil Pipe

FAQ About TOYAN V8 Engine

Q1: What are the basic details of the TOYAN V8 Engine?
- There are two versions: KIT (requires assembly) and Assembled(Sold out).
- It is a 1/10 scale model engine.
- It runs on nitro (methanol) fuel (20-25% nitro fuel prepared by the user).

Q2: How does the lubrication system work?
- It uses mixed splash lubrication (similar to the TOYAN FS-L400 Engine).
- Users need to add a small amount of grease to the camshaft for lubrication.

Q3: Is it water-cooled or air-cooled?
- It is a water-cooled engine.
- Features a built-in mechanical water-cooling pump powered by the crankshaft to circulate coolant.
- Note: Water cooling accessories should be purchased separately by the user.

Q4: What’s special about the exhaust pipe?
- The exhaust pipe is a fully metal, small integrated exhaust manifold.
- It is welded (not printed), which is a complex and costly process to ensure low defect rates.

Q5: What’s new about the carburetor?
- The TOYAN V8 Engine features a new carburetor with a pump, which is different from the TOYAN L400 Engine.
- This design ensures accurate throttle adjustment, superior response sensitivity, and stable operation.

Q6: What is the crankshaft structure?
- It uses a 90-degree cross-crankshaft structure (unlike performance engines like the Ferrari V8, which use a straight-line crankshaft).

Q7: Does the crankshaft have support?
- Yes, the crankshaft is thickened and features an integrated design with a support point in the middle to avoid issues seen in the TOYAN L400 Engine.

Q8: Can it run on gasoline instead of methanol?
- Currently, it runs on nitro (methanol) fuel.
- However, a gasoline version is planned as an upgrade in the future.

Q9: Are there other color options?
- Currently, the engine is available in red and black (recognizable TOYAN Engine colors).
- Other colors may be introduced in the future.

Q10: Will there be a supercharger upgrade?
- Yes, a supercharger is being designed as an optional upgrade and will be launched soon after the TOYAN V8 Engine release.

Q11: What scale of RC car is this engine suitable for?
- Based on its size, it is suitable for 1/5 and 1/6 scale RC cars.

Q12: Will there be a dual camshaft version in the future?
- The current TOYAN V8 Engine uses a single camshaft structure.
- A dual camshaft version is challenging to produce but is planned for future releases.
